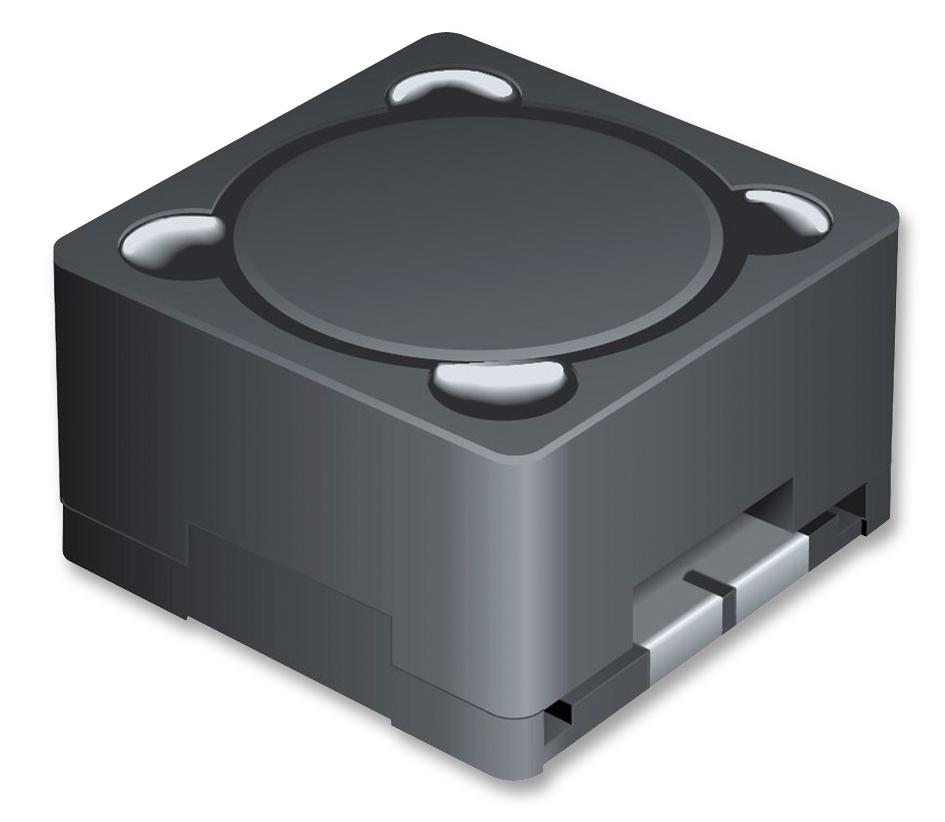

BOURNS - SRR1280-5R6Y - Power Inductor (SMD), 5.6 µH, 8 A, Shielded, 8.5 A, SRR1280
- Inductance: 5.6µH
- RMS Current (Irms): 8A
- Inductor Construction: Shielded
- Saturation Current (Isat): 8.5A
- Product Range: SRR1280 Series
- Power Inductor Case: 12.5mm x 12.5mm x 7.5mm
- DC Resistance Max: 0.016ohm
- Inductance Tolerance: ± 30%
- SVHC: No SVHC (15-Jan-2018)
- No. of Pins: 2Pins
- Q Factor: 20
- Q Test Frequency: 7.96MHz
- Self Resonant Frequency Min: 24MHz
