Omschrijving

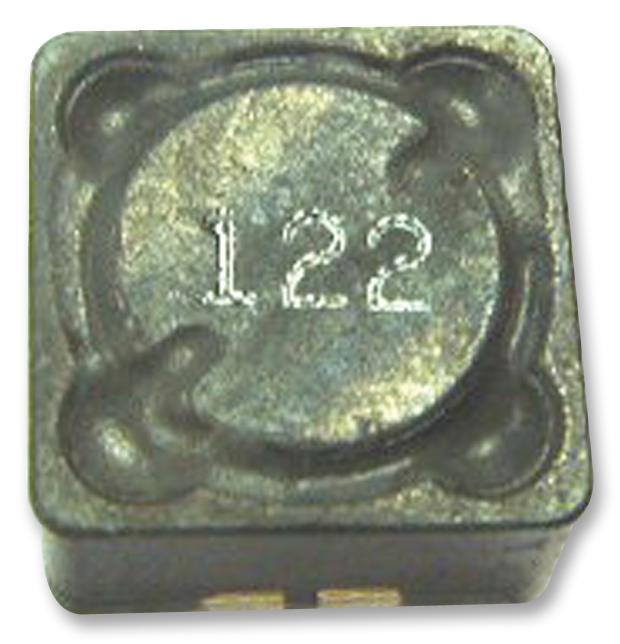

BOURNS - SRR1280-680M - Power Inductor (SMD), 68 µH, 2.4 A, Shielded, 2.3 A, 12.5mm x 12.5mm x 7.5mm
- Inductance: 68µH
- RMS Current (Irms): 2.4A
- Inductor Construction: Shielded
- Saturation Current (Isat): 2.3A
- Product Range: -
- Power Inductor Case: 12.5mm x 12.5mm x 7.5mm
- DC Resistance Max: 0.12ohm
- Inductance Tolerance: ± 20%
- SVHC: No SVHC (07-Jul-2017)
- External Depth: 7.5mm
- External Length / Height: 12.5mm
- External Width: 12.5mm
- Inductor Type: Shielded Power Choke
- Operating Temperature Max: 125°C
- Operating Temperature Min: 40°C
- Q Factor: 20
- Q Test Frequency: 2.52MHz
- Resonant Frequency: 6.5MHz
- Self Resonant Frequency Min: 6.5MHz
- Test Frequency: 2.52MHz
