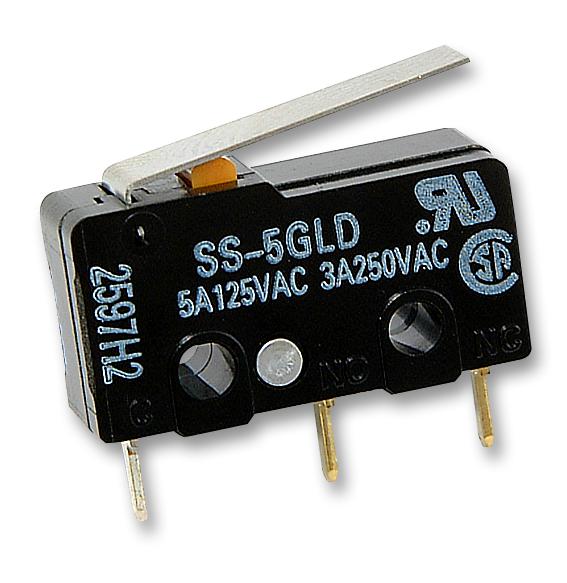

SS-5GLD Microswitch, v4, Pcb, Lever Omron

OMRONSKU:SS-5GLD Bestelcode:170567

Prijs:
Actie prijs€5,20

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (97 units)

Documenten en downloads

Omschrijving

OMRON - SS-5GLD - Microswitch, Snap Action, Lever, SPDT, Solder, 5 A, 250 VDC

  • Microswitch Type: Snap Action
  • Microswitch Actuator: Lever
  • Contact Configuration: SPDT
  • Switch Terminals: Solder
  • Contact Current Max: 5A
  • Contact Voltage DC Nom: 250VDC
  • Product Range: -
  • Contact Voltage AC Nom: 250VAC
  • Operating Force Max: 1.47N
  • Actuation Type: Lever
  • Actuator Type: Hinge Lever
  • Contact Current AC: 3A
  • Contact Current AC Max: 5A
  • Contact Current DC Max: 5A
  • Contact Current Rating: 3A
  • Contact Voltage AC Max: 250V
  • Contact Voltage DC Max: 250V
  • Differential Travel Max: 0.8mm
  • External Depth: 19.8mm
  • External Length / Height: 10.2mm
  • External Width: 6.4mm
  • Fixing Centres LxW: 9.5
  • Lever Length: 14.5mm
  • No. of Electrical Operations: 100000
  • No. of Mechanical Operations: 30000000
  • Operating Force: 0.49N
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -15°C
  • Over Travel Min: 1.2mm
  • Release Force: 6gf
