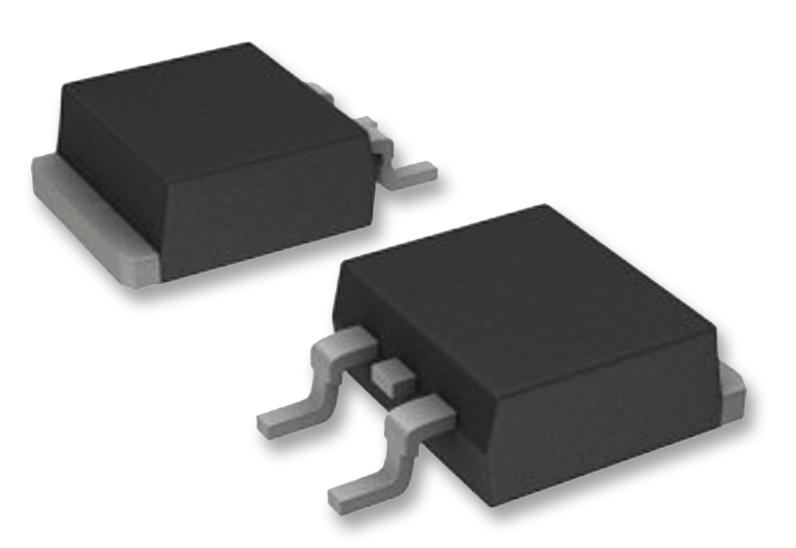

STB60NF06LT4 MOSFET, N, D2-Pak STMICROELECTRONICS

STMICROELECTRONICSSKU:STB60NF06LT4 Bestelcode:1175644

Prijs:
Actie prijs€3,89

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (6280 units)

Documenten en downloads

Omschrijving

STMICROELECTRONICS - STB60NF06LT4 - Power MOSFET, N Channel, 60 V, 60 A, 0.016 ohm, TO-263 (D2PAK), Surface Mount

  • Transistor Polarity: N Channel
  • Continuous Drain Current Id: 60A
  • Drain Source Voltage Vds: 60V
  • On Resistance Rds(on): 0.016ohm
  • Rds(on) Test Voltage Vgs: 5V
  • Threshold Voltage Vgs: 1V
  • Power Dissipation Pd: 110W
  • Transistor Case Style: TO-263
  • No. of Pins: 3Pins
  • Operating Temperature Max: 175°C
  • Product Range: -
  • Automotive Qualification Standard: AEC-Q101
  • MSL: MSL 1 - Unlimited
  • SVHC: No SVHC (17-Dec-2015)
  • Avalanche Single Pulse Energy Eas: 320mJ
  • Capacitance Ciss Typ: 2000pF
  • Current Id Max: 60A
  • Junction Temperature Tj Max: 175°C
  • Operating Temperature Min: -65°C
  • Operating Temperature Range: -65°C to +175°C
  • Pulse Current Idm: 240A
  • Termination Type: Surface Mount Device
  • Voltage Vds Typ: 60V
  • Voltage Vgs Max: 1V
  • Voltage Vgs Rds on Measurement: 10V
  • Voltage Vgs th Min: 1V
