Omschrijving

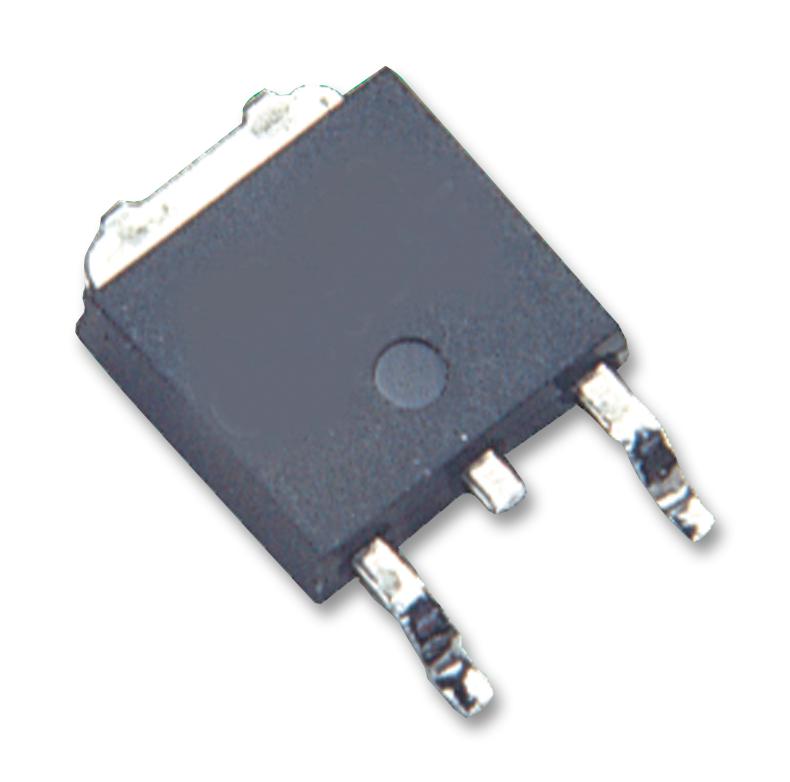

STMICROELECTRONICS - STGB7NC60HDT4 - IGBT, 25 A, 2.5 V, 80 W, TO-263 (D2PAK), 3 Pins
- DC Collector Current: 25A
- Collector Emitter Saturation Voltage Vce(on): 2.5V
- Power Dissipation Pd: 80W
- Collector Emitter Voltage V(br)ceo: -
- Transistor Case Style: TO-263
- No. of Pins: 3Pins
- Operating Temperature Max: 150°C
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (17-Dec-2015)
- Current Ic Continuous a Max: 25A
- Fall Time tf: 72ns
- Pulsed Current Icm: 50A
- Rise Time: 8.5ns
- Termination Type: Surface Mount Device
- Transistor Polarity: N Channel
- Transistor Type: Power IGBT
- Voltage Vces: 600V
