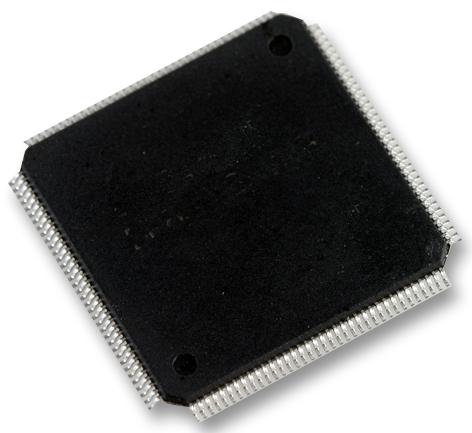

STMICROELECTRONICS - STM32F205ZCT6 - ARM MCU, STM32 Family STM32F2 Series Microcontrollers, ARM Cortex-M3, 32bit, 120 MHz, 256 KB
- Product Range: STM32 Family STM32F2 Series Microcontrollers
- Architecture: ARM Cortex-M3
- No. of Bits: 32bit
- CPU Speed: 120MHz
- Program Memory Size: 256KB
- RAM Memory Size: 100KB
- No. of Pins: 144Pins
- MCU Case Style: LQFP
- No. of I/O's: 114I/O's
- Embedded Interface Type: CAN, I2C, SPI, UART, USART, USB
- Supply Voltage Min: 1.8V
- Supply Voltage Max: 3.6V
- MCU Family: STM32
- MCU Series: STM32F2
- RoHS Phthalates Compliant: Yes
- MSL: MSL 3 - 168 hours
- SVHC: No SVHC (17-Dec-2015)
- Controller Family/Series: (ARM Cortex) STM32
- MPU Core Size: 32bit
- No. of PWM Channels: 6
- No. of Timers: 12
- Operating Temperature Max: 85°C
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +85°C
- Oscillator Type: External, Internal
- Peripherals: ADC, DAC, DMA, PWM, Temp Sensor, Timer
- Program Memory Size: 256KB
- Supply Voltage Range: 1.8V to 3.6V
