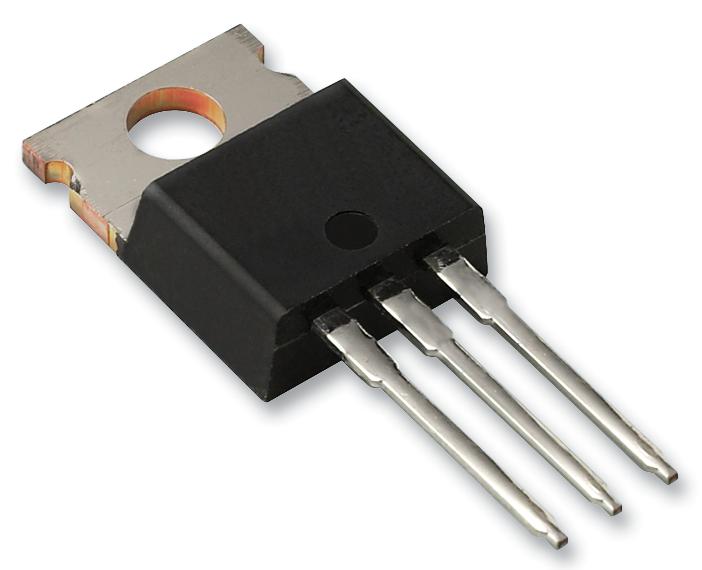

STP40NF10 MOSFET, N, TO-220 STMICROELECTRONICS

STMICROELECTRONICSSKU:STP40NF10 Bestelcode:9803157

Prijs:
Actie prijs€3,99

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (2027 units)

Documenten en downloads

Omschrijving

STMICROELECTRONICS - STP40NF10 - Power MOSFET, N Channel, 100 V, 50 A, 0.025 ohm, TO-220, Through Hole

  • Transistor Polarity: N Channel
  • Continuous Drain Current Id: 50A
  • Drain Source Voltage Vds: 100V
  • On Resistance Rds(on): 0.025ohm
  • Rds(on) Test Voltage Vgs: 10V
  • Threshold Voltage Vgs: 3V
  • Power Dissipation Pd: 150W
  • Transistor Case Style: TO-220
  • No. of Pins: 3Pins
  • Operating Temperature Max: 175°C
  • Product Range: STP Series
  • Automotive Qualification Standard: -
  • MSL: -
  • SVHC: No SVHC (17-Dec-2015)
  • Alternate Case Style: SOT-78B
  • Avalanche Single Pulse Energy Eas: 385mJ
  • Capacitance Ciss Typ: 2180pF
  • Current Id Max: 50A
  • Current Temperature: 25°C
  • Full Power Rating Temperature: 25°C
  • Lead Spacing: 2.54mm
  • No. of Transistors: 1
  • On State resistance @ Vgs = 10V: 28mohm
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +175°C
  • Pin Configuration: a
  • Power Dissipation Ptot Max: 150W
  • Pulse Current Idm: 200A
  • Reverse Recovery Time trr Typ: 90ns
  • Voltage Vds Typ: 100V
  • Voltage Vgs Max: 3V
  • Voltage Vgs Rds on Measurement: 10V
  • Voltage Vgs th Max: 4V
  • Voltage Vgs th Min: 2V
