Omschrijving

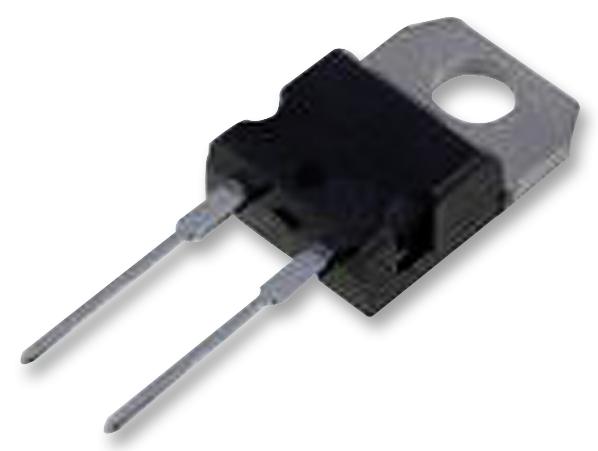

STMICROELECTRONICS - STTH2002DI - Fast / Ultrafast Diode, 200 V, 20 A, Single, 1.1 V, 16 ns, 175 A
- Repetitive Reverse Voltage Vrrm Max: 200V
- Forward Current If(AV): 20A
- Diode Configuration: Single
- Forward Voltage VF Max: 1.1V
- Reverse Recovery Time trr Max: 16ns
- Forward Surge Current Ifsm Max: 175A
- Operating Temperature Max: 175°C
- Diode Case Style: TO-220
- No. of Pins: 2 Pin
- Product Range: STTH2 Series
- Automotive Qualification Standard: -
- SVHC: No SVHC (15-Jan-2018)
- Current If @ Vf: 20A
- Current Ifsm: 175A
- Current Ir Max: 10µA
- Diode Type: Fast Recovery
- Forward Voltage: 1.1V
- Junction Temperature Tj Max: 175°C
- No. of Pins: 2Pins
- Operating Temperature Min: -65°C
- Operating Temperature Range: -65°C to +175°C
- Reverse Recovery Time trr Typ: 16ns
- Reverse Voltage Vr Max: 200V
- Termination Type: Through Hole
