Omschrijving

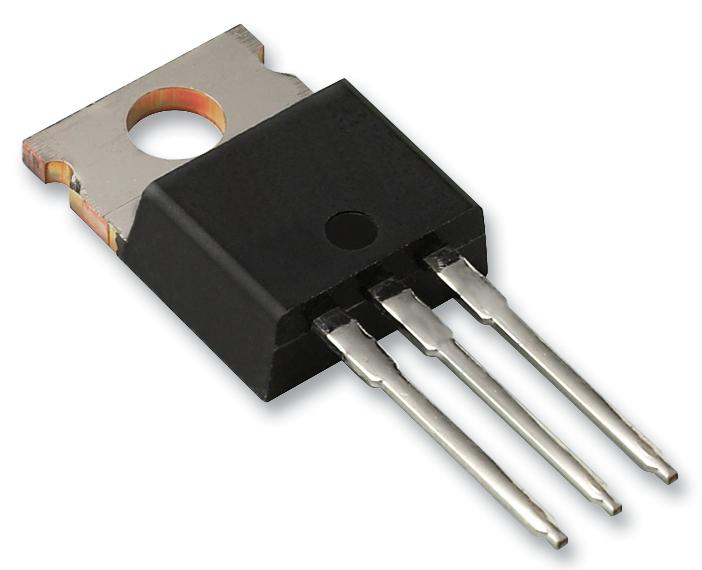

STMICROELECTRONICS - STTH3002CT - Fast / Ultrafast Diode, 200 V, 15 A, Dual Common Cathode, 1.05 V, 17 ns, 180 A
- Repetitive Reverse Voltage Vrrm Max: 200V
- Forward Current If(AV): 15A
- Diode Configuration: Dual Common Cathode
- Forward Voltage VF Max: 1.05V
- Reverse Recovery Time trr Max: 17ns
- Forward Surge Current Ifsm Max: 180A
- Operating Temperature Max: 175°C
- Diode Case Style: TO-220AB
- No. of Pins: 3 Pin
- Product Range: STTH3 Series
- Automotive Qualification Standard: -
- SVHC: No SVHC (15-Jan-2018)
- Case Temperature Tc @ If: 155°C
- Current If @ Vf: 30A
- Current Ifsm: 180A
- Current Ir Max: 20µA
- Current Temperature: 155°C
- Diode Type: Fast Recovery
- Forward Voltage: 1.18V
- Junction Temperature Tj Max: 175°C
- No. of Pins: 3Pins
- Pin Configuration: 1A1,2CommK,3A2
- Reverse Recovery Time trr Typ: 17ns
