Omschrijving

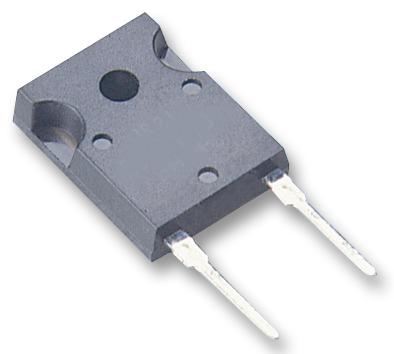

STMICROELECTRONICS - STTH30R04W - Standard Recovery Diode, 400 V, 30 A, Single, 1.45 V, 100 ns, 300 A
- Repetitive Reverse Voltage Vrrm Max: 400V
- Forward Current If(AV): 30A
- Diode Configuration: Single
- Forward Voltage VF Max: 1.45V
- Reverse Recovery Time trr Max: 100ns
- Forward Surge Current Ifsm Max: 300A
- Operating Temperature Max: 175°C
- Diode Case Style: DO-247
- No. of Pins: 2Pins
- Product Range: STTH3 Series
- Automotive Qualification Standard: -
- SVHC: No SVHC (15-Jan-2018)
- Current Ifsm: 300A
- Diode Type: Ultrafast Recovery
- Junction Temperature Tj Max: 175°C
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +175°C
- Reverse Recovery Time trr Typ: 24ns
- Termination Type: Through Hole
