T01-0550-S08 Socket, Free, 8WAY Te Connectivity

TE CONNECTIVITYSKU:T01-0550-S08 Bestelcode:130813

Prijs:
Actie prijs€86,11

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (183 units)

Documenten en downloads

Omschrijving

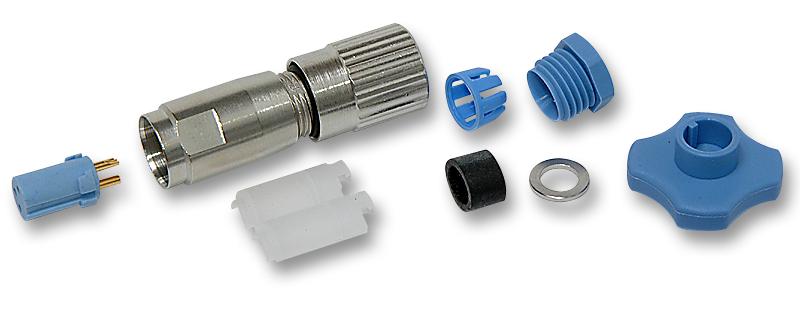

TE CONNECTIVITY - T01-0550-S08 - Circular Connector, T01 Series, Cable Mount Receptacle, 8 Contacts, Solder Socket

  • Product Range: TRIAD 01 Series
  • Circular Connector Shell Style: Cable Mount Receptacle
  • No. of Contacts: 8Contacts
  • Circular Contact Type: Solder Socket
  • Coupling Style: -
  • Connector Body Material: Copper Alloy Body
  • Connector Body Plating: -
  • Contact Material: -
  • Contact Plating: Gold
  • SVHC: No SVHC (15-Jan-2019)
  • Cable Diameter Max: 5mm
  • Connector Mounting: Cable Mount
  • Connector Type: Circular Industrial
  • Contact Gender: Socket
  • Contact Plating: Gold Plated Contacts
  • Contact Resistance: 5mohm
  • Contact Termination: Solder
  • Contact Termination Type: Solder
  • Current Rating: 1A
  • Flammability Rating: UL94V-0
  • Gender: Receptacle
  • IP / NEMA Rating: IP65
  • No. of Mating Cycles: 500
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -40°C
  • Panel Thickness: 4mm
  • Test Voltage: 500V
  • Voltage Rating VAC: 60V
  • Wire Area Size Max: 0.25mm²
  • Working Voltage: 60V
