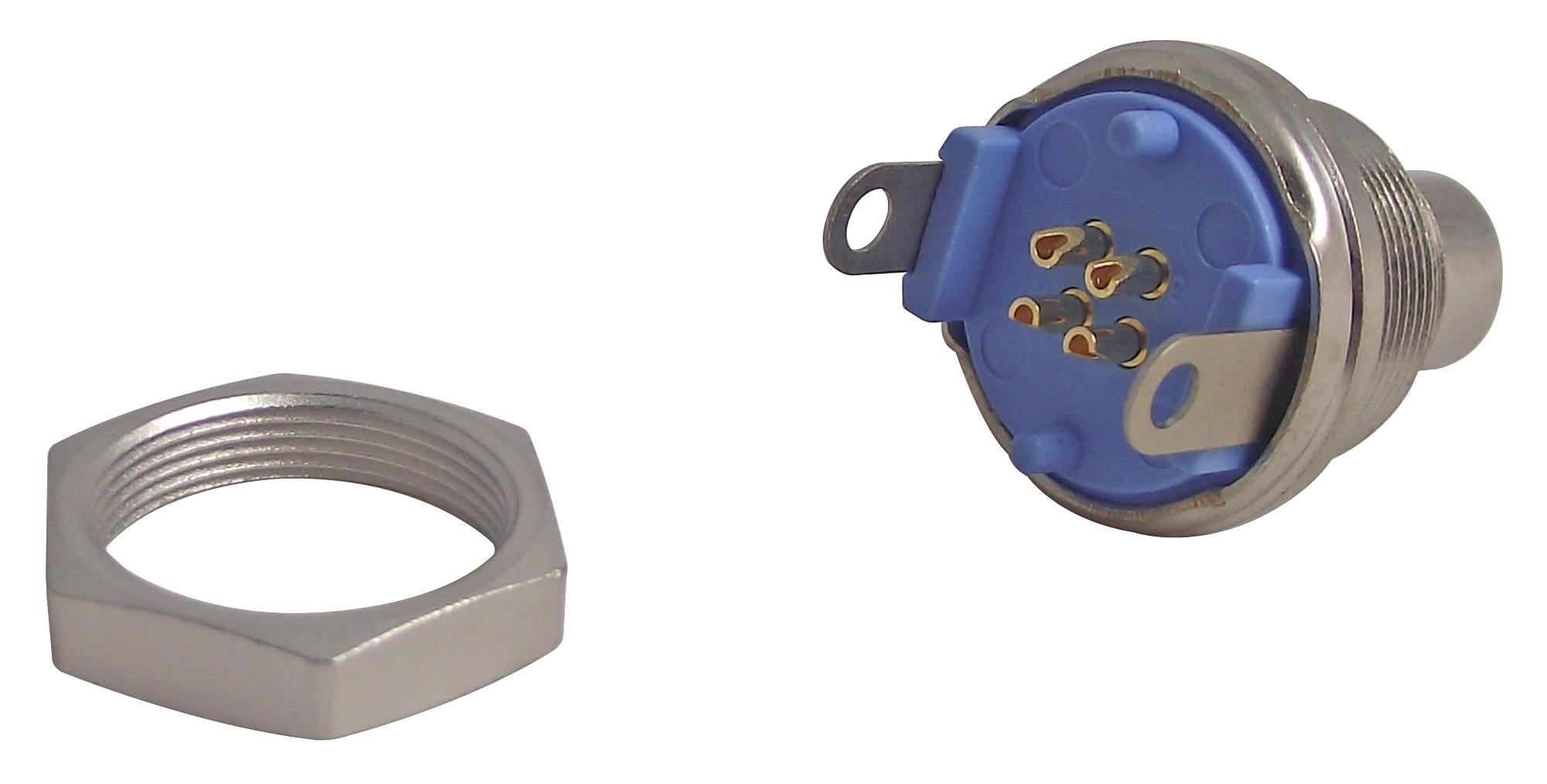

TE CONNECTIVITY - T01-0580-P04 - Circular Connector, T01 Series, Panel Mount Receptacle, 4 Contacts, Solder Pin, Copper Alloy Body
- Product Range: TRIAD 01 Series
- Circular Connector Shell Style: Panel Mount Receptacle
- No. of Contacts: 4Contacts
- Circular Contact Type: Solder Pin
- Coupling Style: -
- Connector Body Material: Copper Alloy Body
- Connector Body Plating: -
- Contact Material: -
- Contact Plating: Gold
- SVHC: No SVHC (15-Jan-2019)
- Cable Diameter Max: 5mm
- Connector Mounting: Panel Mount
- Connector Type: Circular Industrial
- Contact Gender: Pin
- Contact Plating: Gold Plated Contacts
- Contact Resistance: 2mohm
- Contact Termination: Solder
- Contact Termination Type: Solder
- Current Rating: 3A
- Flammability Rating: UL94V-0
- Gender: Plug
- IP / NEMA Rating: IP65
- No. of Mating Cycles: 500
- Operating Temperature Max: 85°C
- Operating Temperature Min: -40°C
- Panel Thickness: 4mm
- Test Voltage: 500V
- Voltage Rating VAC: 60V
- Wire Area Size Max: 0.25mm²
- Working Voltage: 60V
