Omschrijving

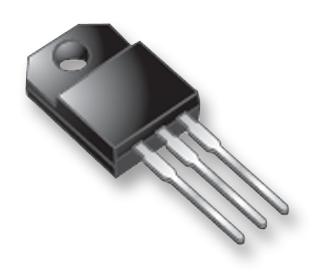

STMICROELECTRONICS - T2035H-6I - Triac, 600 V, 20 A, TO-220AB, 1 V, 200 A, 35 mA
- Peak Repetitive Off-State Voltage, Vdrm: 600V
- On State RMS Current IT(rms): 20A
- Triac Case Style: TO-220AB
- Gate Trigger Current Max (QI), Igt: -
- Gate Trigger Voltage Max Vgt: 1V
- Peak Gate Power: 1W
- Peak Non Rep Surge Current Itsm 50Hz: 200A
- Holding Current Max Ih: 35mA
- No. of Pins: -
- Operating Temperature Max: 150°C
- Product Range: -
- MSL: -
- SVHC: No SVHC (17-Dec-2015)
- Current Itsm @ 60Hz: 210A
- Gate Trigger Current Igt (Q1) t2+g+: 35mA
- Gate Trigger Current Max, Igt: 35mA
- Holding Current Max Ih: 35mA
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +150°C
- Termination Type: Through Hole
- Thyristor Type: Triac
