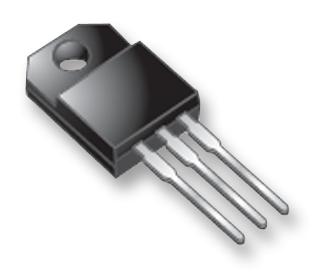

T405-600B Triac, 4A, 600v, DPAK STMICROELECTRONICS

STMICROELECTRONICSSKU:T405-600B Bestelcode:9946675

Prijs:
Actie prijs€1,40

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (6428 units)

Documenten en downloads

Omschrijving

STMICROELECTRONICS - T405-600B - Triac, 600 V, 4 A, 1.3 V, 30 A, 10 mA

  • Peak Repetitive Off-State Voltage, Vdrm: 600V
  • On State RMS Current IT(rms): 4A
  • Triac Case Style: -
  • Gate Trigger Current Max (QI), Igt: 5mA
  • Gate Trigger Voltage Max Vgt: 1.3V
  • Peak Gate Power: 1W
  • Peak Non Rep Surge Current Itsm 50Hz: 30A
  • Holding Current Max Ih: 10mA
  • No. of Pins: 3Pins
  • Operating Temperature Max: 125°C
  • Product Range: -
  • MSL: -
  • SVHC: No SVHC (17-Dec-2015)
  • Current Itsm: 30A
  • Current Itsm @ 60Hz: 31A
  • Current t2+g-: 5mA
  • Current t2-g-: 5mA
  • Gate Trigger Current Igt (Q1) t2+g+: 5mA
  • Gate Trigger Current Max, Igt: 5mA
  • Holding Current Max Ih: 10mA
  • Operating Temperature Min: -40°C
  • Operating Temperature Range: -40°C to +125°C
  • Repetitive Reverse Voltage Vrrm Max: 600V
  • Thyristor Type: Triac
