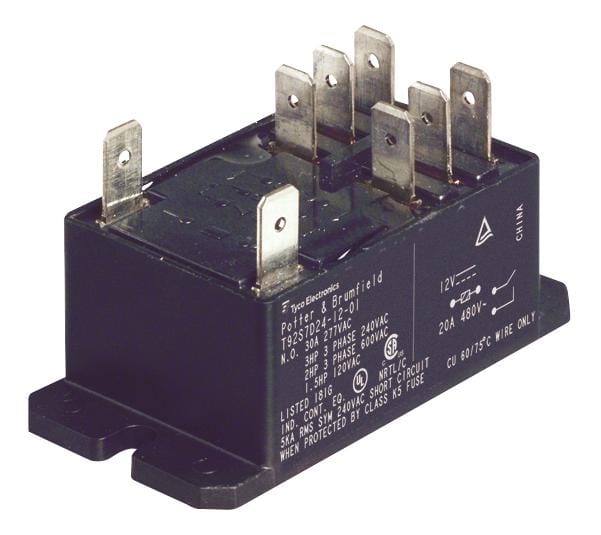

POTTER&BRUMFIELD - TE CONNECTIVITY - 5-1393211-3 - Power Relay, DPDT, 12 VDC, 30 A, T92, Panel Mount, Non Latching
- Contact Configuration: DPDT
- Coil Voltage: 12VDC
- Contact Current: 40A
- Product Range: T92 Series
- Relay Mounting: Panel
- Coil Type: Non Latching
- Contact Voltage VAC: 277VAC
- Relay Terminals: Quick Connect
- Contact Voltage VDC: 28VDC
- Contact Material: Silver Cadmium Oxide
- Coil Resistance: 86ohm
- SVHC: Cadmium oxide (27-Jun-2018)
- Approvals & Standards: CSA, UL, VDE
- Coil Operating Lower Percent Limit: 80%
- Coil Operating Upper Percent Limit: 110%
- Coil Voltage VDC Nom: 12V
- Contact Current AC Max: 30A
- Contact Current DC Max: 20A
- Contact Current Max: 40A
- Contact Voltage AC Max: 240V
- Contact Voltage AC Nom: 600V
- Contact Voltage DC Max: 28V
- Contact Voltage DC Nom: 28V
- DC Coil Power: 1.55W
- Dielectric Strength VDC: 4000V
- External Depth: 26mm
- External Height: 69mm
- External Length / Height: 69mm
- External Width: 34mm
- Flammability Rating: UL94V-0
- Nom Operating Power: 1.7W
- Operating Temperature Max: 65°C
- Operating Temperature Min: -40°C
- Operating Time: 15ms
- Relay Type: Power
