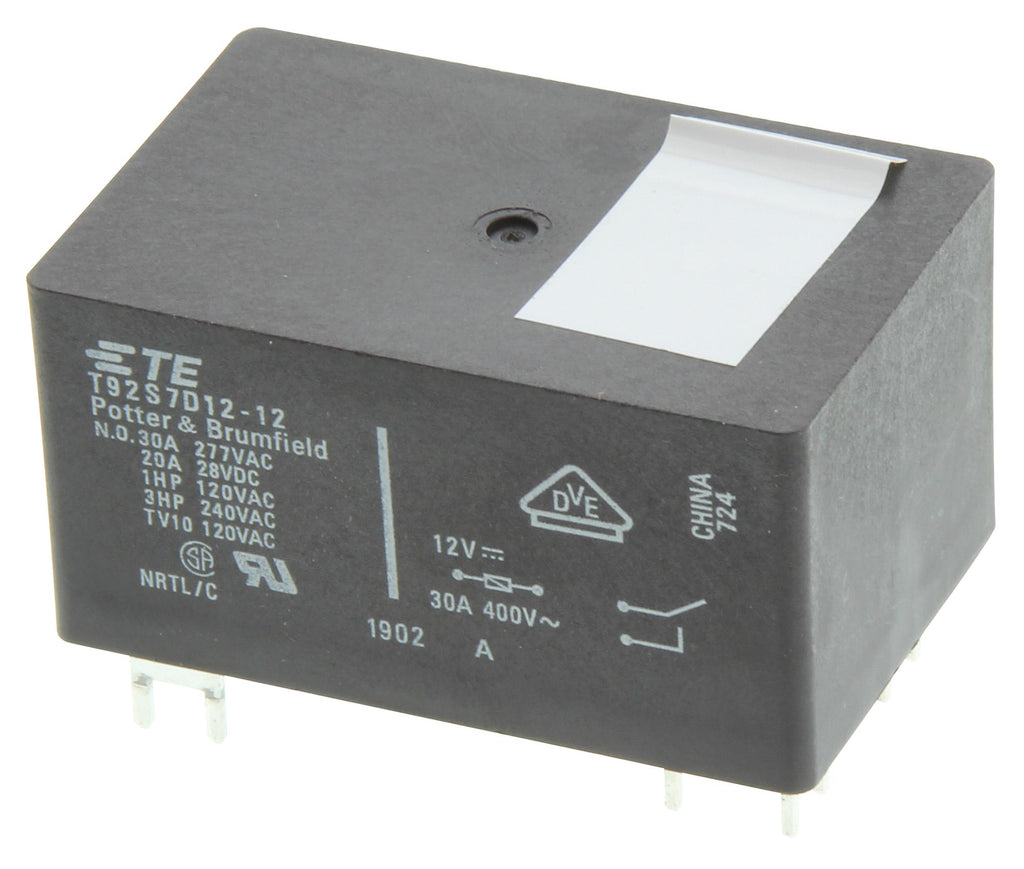

POTTER&BRUMFIELD - TE CONNECTIVITY - T92S7D12-12 - General Purpose Relay, T92 Series, Power, Non Latching, DPST-NO, 12 VDC, 40 A
- Contact Configuration: DPST-NO
- Coil Voltage: 12VDC
- Contact Current: 40A
- Product Range: T92 Series
- Relay Mounting: Through Hole
- Coil Type: Non Latching
- Contact Voltage VAC: 277VAC
- Relay Terminals: Solder
- Contact Voltage VDC: 28VDC
- Contact Material: Silver Cadmium Oxide
- Coil Resistance: 86ohm
- SVHC: Cadmium oxide (27-Jun-2018)
- Approvals & Standards: CSA, UL, VDE
- Coil Voltage VDC Nom: 12V
- Contact Current Max: 30A
- Contact Voltage AC Nom: 277V
- Contact Voltage DC Nom: 28V
- External Depth: 52.32mm
- External Height: 30.73mm
- External Width: 34.54mm
- Nom Operating Power: 1.7W
- Relay Type: Power - General Purpose
