Documenten en downloads
Omschrijving

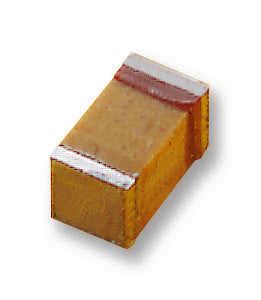

KYOCERA AVX - TACK106M002QTA - Surface Mount Tantalum Capacitor, TACmicrochip®, 10 µF, 2.5 V, 0402 [1005 Metric], ± 20%, 15 ohm, K
- Capacitance: 10µF
- Voltage Rating: 2.5V
- Tantalum Capacitor Case: 0402 [1005 Metric]
- Product Range: TAC Series
- Capacitance Tolerance: ± 20%
- Operating Temperature Min: -55°C
- Operating Temperature Max: 125°C
- ESR: 15ohm
- Manufacturer Size Code: K
- Automotive Qualification Standard: -
- SVHC: No SVHC (15-Jan-2019)
- Capacitance Tolerance ±: ± 20%
- Capacitor Case Style: 0402 [1005 Metric]
- Capacitor Mounting: SMD
- Capacitor Terminals: SMD
- ESR Frequency: 100kHz
- External Depth: 0.5mm
- External Length / Height: 1mm
- External Width: 0.5mm
- Leakage Current: 0.5µA
- No. of Pins: 2Pins
- Operating Temperature Range: -55°C to +125°C
- Reel Quantity: 1000
- Tape Width: 5mm
- Tolerance +: 20%
- Tolerance -: 20%
- Voltage Rating V DC: 2.5V
