Documenten en downloads
Omschrijving

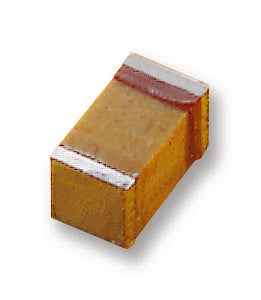

KYOCERA AVX - TACT476M010XTA - Surface Mount Tantalum Capacitor, TACmicrochip®, 47 µF, 10 V, 1210 [3225 Metric], ± 20%, 1 ohm, T
- Capacitance: 47µF
- Voltage Rating: 10V
- Tantalum Capacitor Case: 1210 [3225 Metric]
- Product Range: TAC Series
- Capacitance Tolerance: ± 20%
- Operating Temperature Min: -55°C
- Operating Temperature Max: 125°C
- ESR: 1ohm
- Manufacturer Size Code: T
- Automotive Qualification Standard: -
- SVHC: No SVHC (15-Jan-2019)
- Capacitance Tolerance ±: ± 20%
- Capacitor Case Style: 1210 [3225 Metric]
- Capacitor Mounting: SMD
- Capacitor Terminals: SMD
- ESR Frequency: 100kHz
- External Depth: 1.2mm
- External Length / Height: 3.5mm
- External Width: 2.8mm
- Leakage Current: 4.7µA
- No. of Pins: 2Pins
- Operating Temperature Range: -55°C to +125°C
- Reel Quantity: 500
- Tape Width: 5mm
- Tolerance +: 20%
- Tolerance -: 20%
- Voltage Rating V DC: 10V
