Documenten en downloads
Omschrijving

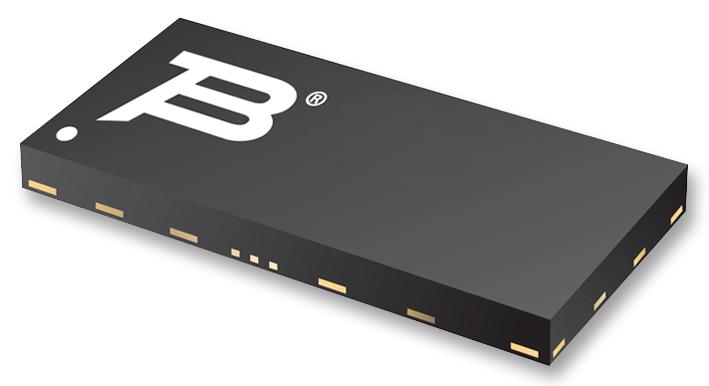

BOURNS - TBU-CA065-200-WH - Surge Protector, High Speed, Single, Bidirectional, 1 Pole, 300 VAC, PCB - Surface Mount
- Product Range: TBU-CA Series
- Suppressor Type: High Speed Surge Protector IC
- No. of Outlets: -
- Outlet Type: -
- Voltage Rating: 650V
- Output Current: -
- Peak Surge Current: -
- Response Time: 1µs
- SVHC: No SVHC (15-Jan-2018)
- Continuing Operating Voltage Max: 300VAC
- External Depth: 4mm
- External Length / Height: 0.85mm
- External Width: 6.5mm
- No. of Poles: 1 Pole
- Operating Temperature Max: 125°C
- Operating Temperature Min: -40°C
- Resistance: 8.6ohm
- Suppressor Mounting: PCB - Surface Mount
- Surge Current: 300mA
