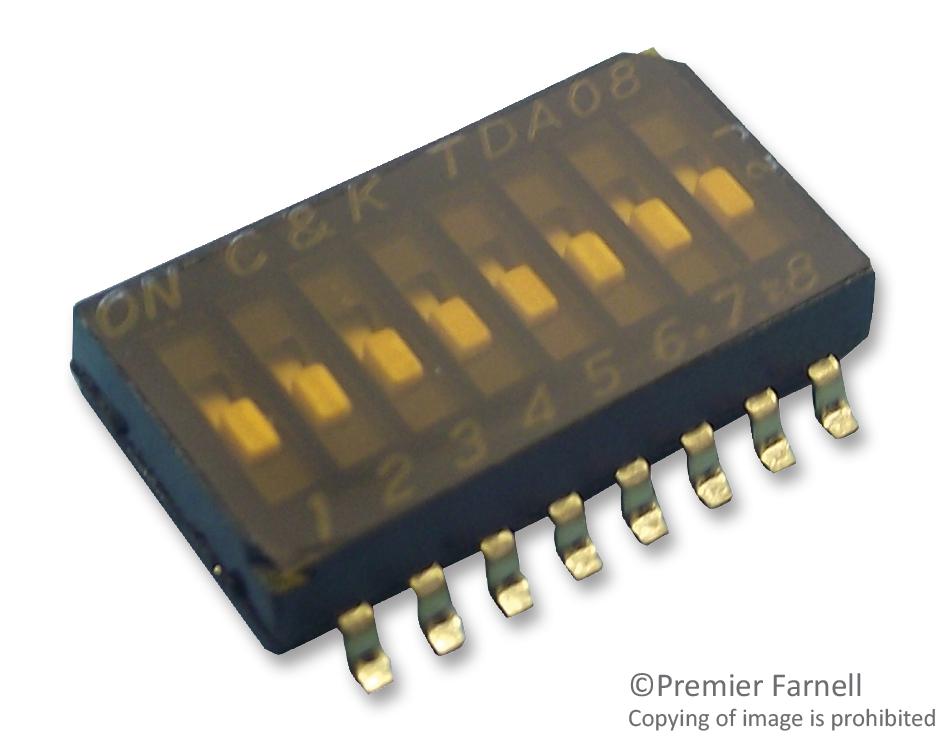

TDA08H0SB1 Dip Switch, Position 8 C&K Components

C&K COMPONENTSSKU:TDA08H0SB1 Bestelcode:1653408

Prijs:
Actie prijs€6,85

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (870 units)

Documenten en downloads

Omschrijving

C&K COMPONENTS - TDA08H0SB1 - DIP / SIP Switch, 8 Circuits, Slide, Surface Mount, SPST, 24 VDC, 25 mA

  • No. of Circuits: 8Circuits
  • Switch Actuator Style: Slide
  • Switch Mounting: SMD
  • Contact Configuration: SPST
  • Contact Voltage DC Max: 24VDC
  • Contact Current DC Max: 25mA
  • Product Range: TDA Series
  • Switch Type: DIP Sealed
  • SVHC: No SVHC (15-Jan-2019)
  • Actuation Type: Flat
  • Actuator Type: Flush Slide
  • Contact Current @ Contact Voltage DC Max: 100mA
  • Contact Resistance: 100mohm
  • Dielectric Strength VDC: 300VAC
  • External Depth: 6.2mm
  • External Length / Height: 2.3mm
  • External Width: 11.29mm
  • Flammability Rating: UL 94V-0
  • Insulation Resistance: 100Mohm
  • Insulation Resistance Voltage: 100VDC
  • Lead Spacing: 1.27mm
  • Material: PPS
  • No. of Electrical Operations: 1000
  • No. of Mechanical Operations: 1000
  • No. of Positions: 8Ways
  • Operating Force Max: 4.9N
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -40°C
  • Pitch Spacing: 1.27mm
  • Storage Temperature Max: 85°C
  • Storage Temperature Min: -40°C
  • Switching Current DC Max: 25mA
