Omschrijving

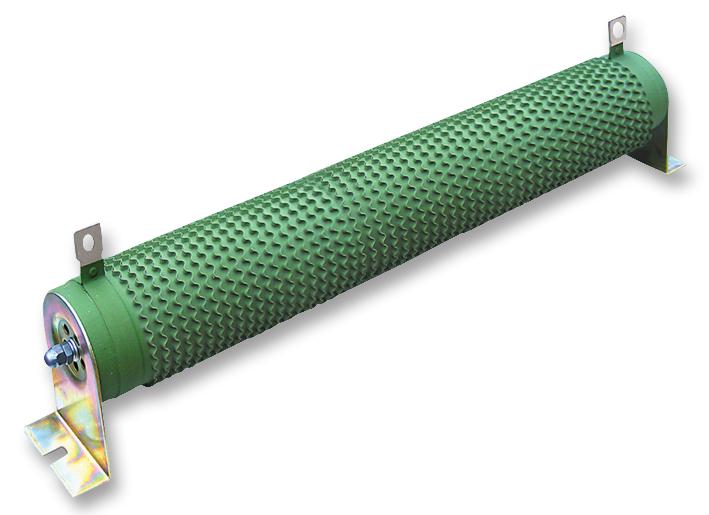

CGS - TE CONNECTIVITY - TE2500B100RJ - Resistor, Solder Lug, 100 ohm, TE, 2.5 kW, ± 5%, Solder Lug
- Resistance: 100ohm
- Product Range: TE Series
- Power Rating: 2.5kW
- Resistance Tolerance: ± 5%
- Resistor Terminals: Solder Lug
- Voltage Rating: -
- Resistor Element Material: Wirewound
- Temperature Coefficient: ± 440ppm/°C
- SVHC: No SVHC (27-Jun-2018)
- Body Diameter: 60mm
- Body Length: 600mm
- External Depth: 60mm
- External Length / Height: 119mm
- External Width: 650mm
- No. of Pins: 2Pins
- Operating Temperature Max: 225°C
- Operating Temperature Min: -25°C
- Operating Temperature Range: -25°C to +225°C
- Resistor Mounting: Panel
