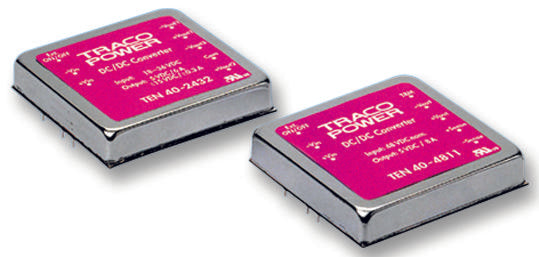

TRACO POWER - TEN 40-1223 - Isolated Through Hole DC/DC Converter, ITE, 2:1, 40 W, 2 Output, 15 V, 1.4 A
- No. of Outputs: 2 Output
- Output Power Max: 40W
- Output Voltage - Output 1: 15V
- Output Current - Output 1: 1.4A
- Output Voltage - Output 2: -15V
- Output Current - Output 2: 1.4A
- Output Voltage - Output 3: -
- Output Current - Output 3: -
- Product Range: TRACO TEN 40 Series
- Input Voltage DC Min: 9V
- Input Voltage DC Max: 18V
- DC / DC Converter Output Type: Fixed
- DC / DC Converter Type: DIP
- DC / DC Converter Mounting: Through Hole
- Width: 50.8mm
- Height: 10.2mm
- Depth: 50.8mm
- SVHC: No SVHC (27-Jun-2018)
- Approval Bodies: cUL, EN, IEC, UL
- Approvals & Standards: IEC, UL
- Isolation Voltage: 1.5kV
- No. of Outputs: 2Outputs
- Power Rating: 40W
- Supply Voltage: 12V
