Omschrijving

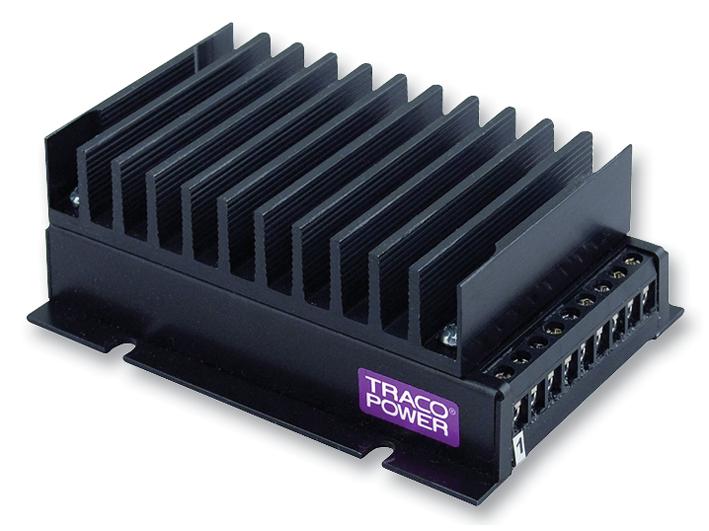

TRACO POWER - TEP 150-2416WI - Isolated Chassis Mount DC/DC Converter, Railway, 4:1, 150 W, 1 Output, 28 V, 5.4 A
- No. of Outputs: 1 Output
- Output Power Max: 150W
- Output Voltage - Output 1: 28V
- Output Current - Output 1: 5.4A
- Output Voltage - Output 2: -
- Output Current - Output 2: -
- Output Voltage - Output 3: -
- Output Current - Output 3: -
- Product Range: TEP 150WI Series
- Input Voltage DC Min: 9V
- Input Voltage DC Max: 36V
- DC / DC Converter Mounting: Chassis
- DC / DC Converter Output Type: Fixed
- SVHC: No SVHC (27-Jun-2018)
- Approvals & Standards: IEC, UL
- DC / DC Converter Type: Module
- Efficiency: 86%
- External Depth: 65mm
- External Length / Height: 34mm
- External Width: 98mm
- Input Voltage Max: 36V
- Input Voltage Min: 9V
- Isolation Voltage: 2.25kV
- No. of Outputs: 1Outputs
- Output Current: 5.4A
- Output Current Max: 5.4A
- Output Voltage: 28V
- Output Voltage Nom.: 28V
- Power Rating: 150W
- Power Supply Output Type: Fixed
