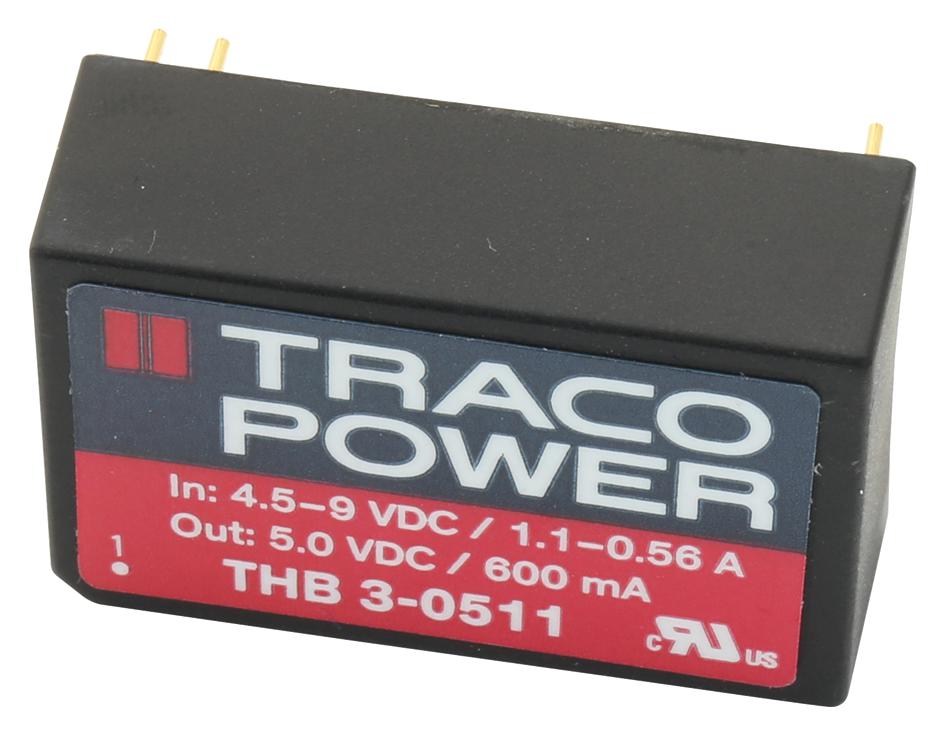

TRACO POWER - THB 3-0511 - Isolated Through Hole DC/DC Converter, Medical, 2:1, 3 W, 1 Output, 5 V, 600 mA
- No. of Outputs: 1 Output
- Output Power Max: 3W
- Output Voltage - Output 1: 5V
- Output Current - Output 1: 600mA
- Output Voltage - Output 2: -
- Output Current - Output 2: -
- Output Voltage - Output 3: -
- Output Current - Output 3: -
- Product Range: -
- Input Voltage DC Min: 4.5V
- Input Voltage DC Max: 9V
- DC / DC Converter Output Type: Fixed
- DC / DC Converter Type: DIP
- DC / DC Converter Mounting: Through Hole
- Width: 20.3mm
- Height: 10.7mm
- Depth: 31.8mm
- SVHC: No SVHC (27-Jun-2018)
- Approval Bodies: CSA C22.2 No. 601, EN 60601, IEC 60601, UL 60601
- Approvals & Standards: CSA 22.2 No. 60601, IEC 60601, UL 60601
- Efficiency: 70%
- Isolation Voltage: 4kV
- Line Regulation: 1%
- Load Regulation: 0.75%
- No. of Outputs: 1Outputs
- Operating Temperature Max: +71°C
- Operating Temperature Min: -40°C
- Output Ripple Voltage pk-pk: 100mV
- Power Rating: 3W
- Supply Voltage: 5V
