THR.405.S5A CONNECTOR, IN-LINE, IP68, 5WAY HYLEC

HYLECSKU:THR.405.S5A Bestelcode:1521775

Prijs:
Actie prijs€55,46

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (29 units)

Documenten en downloads

Omschrijving

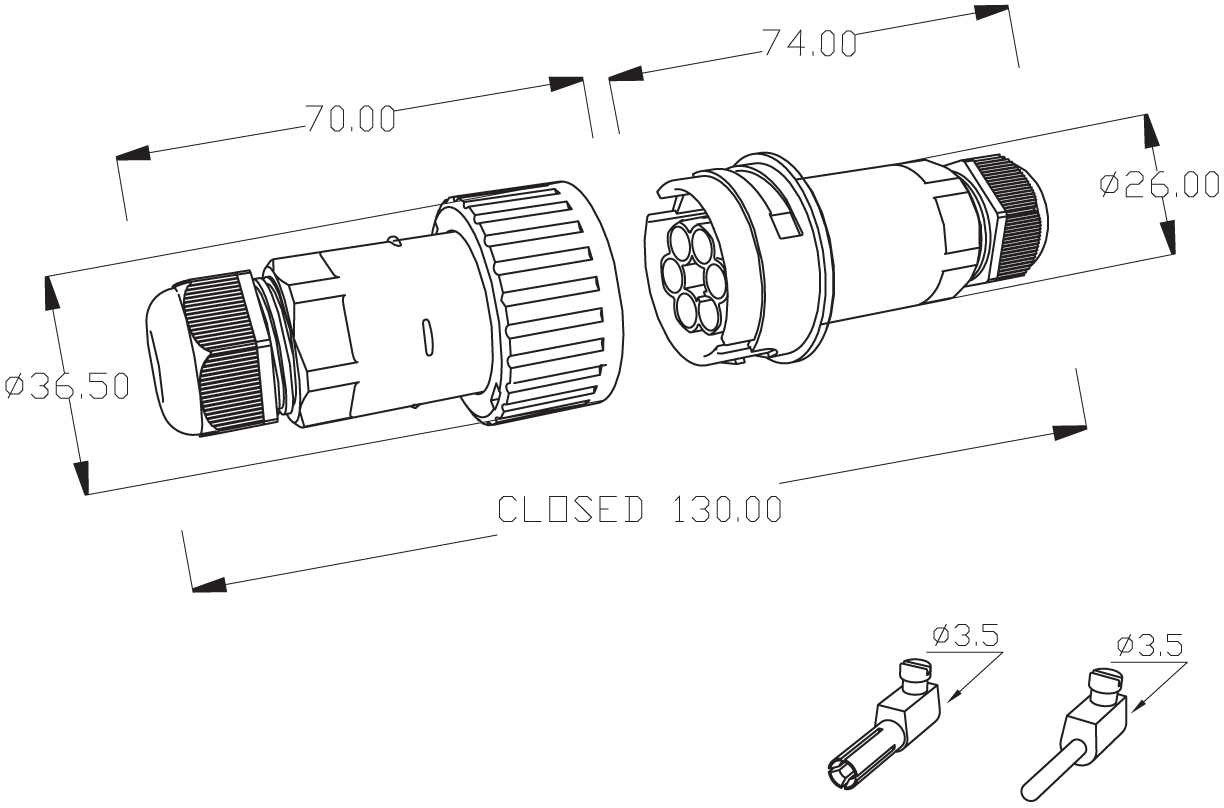

HYLEC - THR.405.S5A - Circular Connector, TH405 Series, 5 Contacts, Nylon (Polyamide) Body

  • Product Range: TH405 Series
  • Circular Connector Shell Style: -
  • No. of Contacts: 5Contacts
  • Circular Contact Type: -
  • Coupling Style: -
  • Connector Body Material: Nylon (Polyamide) Body
  • Connector Body Plating: -
  • Contact Material: -
  • Contact Plating: -
  • SVHC: No SVHC (15-Jan-2019)
  • Cable Diameter Max: 14mm
  • Cable Diameter Min: 7mm
  • Connector Mounting: Cable Mount
  • Connector Type: Adaptor, In-Line
  • Contact Termination Type: Screw
  • Current Rating: 17.5A
  • Flammability Rating: UL94V2
  • IP / NEMA Rating: IP68
  • Operating Temperature Max: 125°C
  • Operating Temperature Min: -40°C
  • Wire Area Size Max: 4mm²
  • Withstand Voltage: 400V
