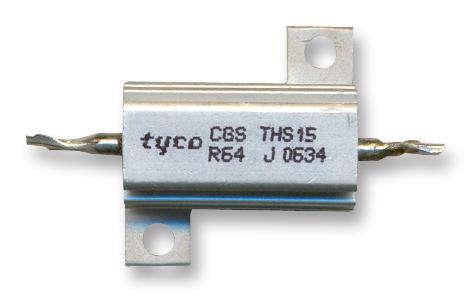

THS153R9J Resistor, Al Clad, 15w 3R9 5% CGS - Te Connectivity

CGS - TE CONNECTIVITYSKU:THS153R9J Bestelcode:1259348

Prijs:
Actie prijs€5,09

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (325 units)

Documenten en downloads

Omschrijving

CGS - TE CONNECTIVITY - THS153R9J - Resistor, Axial Leaded, 3.9 ohm, THS, 15 W, ± 5%, Solder Lug, 265 V

  • Resistance: 3.9ohm
  • Product Range: THS Series
  • Power Rating: 15W
  • Resistance Tolerance: ± 5%
  • Resistor Terminals: Solder Lug
  • Voltage Rating: 265V
  • Resistor Element Material: Wirewound
  • Temperature Coefficient: ± 50ppm/°C
  • Body Length: 21mm
  • External Length / Height: 11mm
  • External Width: 21mm
  • Fixing Hole Diameter: 2.4mm
  • Full Power Rating Temperature: 25°C
  • Insulation Resistance: 10000Mohm
  • Lead Length: 7mm
  • Length: 36.5mm
  • No. of Pins: 2Pins
  • Operating Temperature Max: 190°C
  • Operating Temperature Min: -25°C
  • Operating Temperature Range: -25°C to +190°C
  • Resistor Mounting: Panel
  • Temperature Coeff. +: 50ppm/°C
  • Temperature Coeff. -: 50ppm/°C
  • Tolerance +: 5%
  • Tolerance -: 5%
  • Voltage Rating V DC: 265V
  • Voltage Rating VAC: 265V
  • Working Voltage: 265V
