Omschrijving

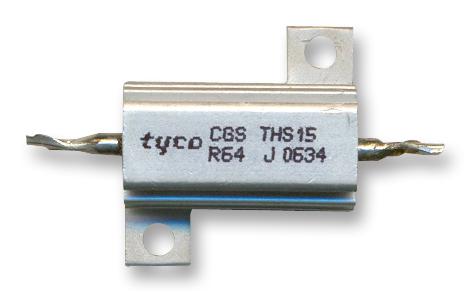

CGS - TE CONNECTIVITY - THS156R8J - Resistor, Axial Leaded, 6.8 ohm, THS, 15 W, ± 5%, Solder Lug, 265 V
- Resistance: 6.8ohm
- Product Range: THS Series
- Power Rating: 15W
- Resistance Tolerance: ± 5%
- Resistor Terminals: Solder Lug
- Voltage Rating: 265V
- Resistor Element Material: Wirewound
- Temperature Coefficient: ± 50ppm/°C
- Body Length: 21mm
- External Length / Height: 11mm
- External Width: 21mm
- Fixing Hole Diameter: 2.4mm
- Full Power Rating Temperature: 25°C
- Insulation Resistance: 10000Mohm
- Lead Length: 7mm
- Length: 36.5mm
- No. of Pins: 2Pins
- Operating Temperature Max: 190°C
- Operating Temperature Min: -25°C
- Operating Temperature Range: -25°C to +190°C
- Resistor Case Style: Axial Leaded
- Resistor Mounting: Through Hole
- Temperature Coeff. +: 50ppm/°C
- Temperature Coeff. -: 50ppm/°C
- Tolerance +: 5%
- Tolerance -: 5%
- Voltage Rating V DC: 265V
- Voltage Rating VAC: 265V
- Working Voltage: 265V
