Omschrijving

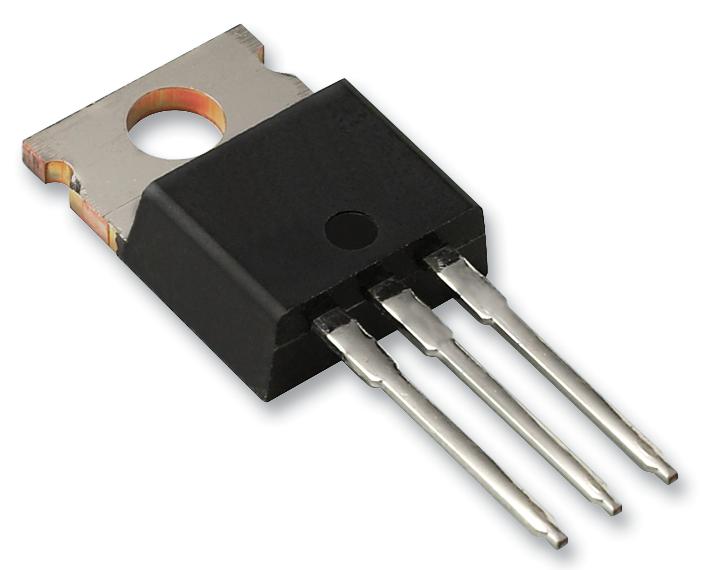

STMICROELECTRONICS - TIP102 - Bipolar (BJT) Single Transistor, NPN, 100 V, 8 A, 80 W, TO-220, Through Hole
- Transistor Polarity: NPN
- Collector Emitter Voltage V(br)ceo: 100V
- Transition Frequency ft: -
- Power Dissipation Pd: 80W
- DC Collector Current: 8A
- DC Current Gain hFE: 200hFE
- Transistor Case Style: TO-220
- No. of Pins: 3Pins
- Operating Temperature Max: 150°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: -
- SVHC: No SVHC (17-Dec-2015)
- Collector Emitter Saturation Voltage Vce(on): 2V
- Current Ic Continuous a Max: 3A
- Hfe Min: 1000
- Operating Temperature Min: -65°C
- Operating Temperature Range: -65°C to +150°C
- Termination Type: Through Hole
- Transistor Type: Power Darlington
