Omschrijving

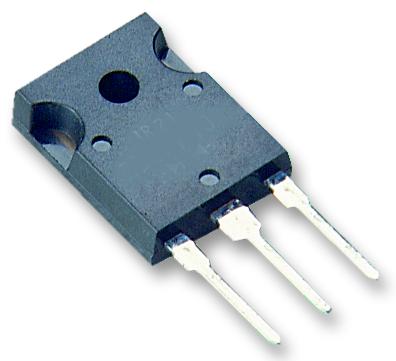

STMICROELECTRONICS - TIP142. - Bipolar (BJT) Single Transistor, NPN, 100 V, 10 A, 125 W, TO-247, Through Hole
- Transistor Polarity: NPN
- Collector Emitter Voltage V(br)ceo: 100V
- Transition Frequency ft: -
- Power Dissipation Pd: 125W
- DC Collector Current: 10A
- DC Current Gain hFE: 1000hFE
- Transistor Case Style: TO-247
- No. of Pins: 3Pins
- Operating Temperature Max: 150°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: -
- SVHC: No SVHC (17-Dec-2015)
- Collector Emitter Saturation Voltage Vce(on): 3V
- Current Ic Continuous a Max: 10A
- Hfe Min: 500
- Operating Temperature Min: -65°C
- Operating Temperature Range: -65°C to +150°C
- Termination Type: Through Hole
