Tis 075-124 PSU, DIN Rail, 75W, 24V TRACO Power

TRACO POWERSKU:TIS 075-124 Bestelcode:1242578

Prijs:
Actie prijs€195,28

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (5 units)

Documenten en downloads

Omschrijving

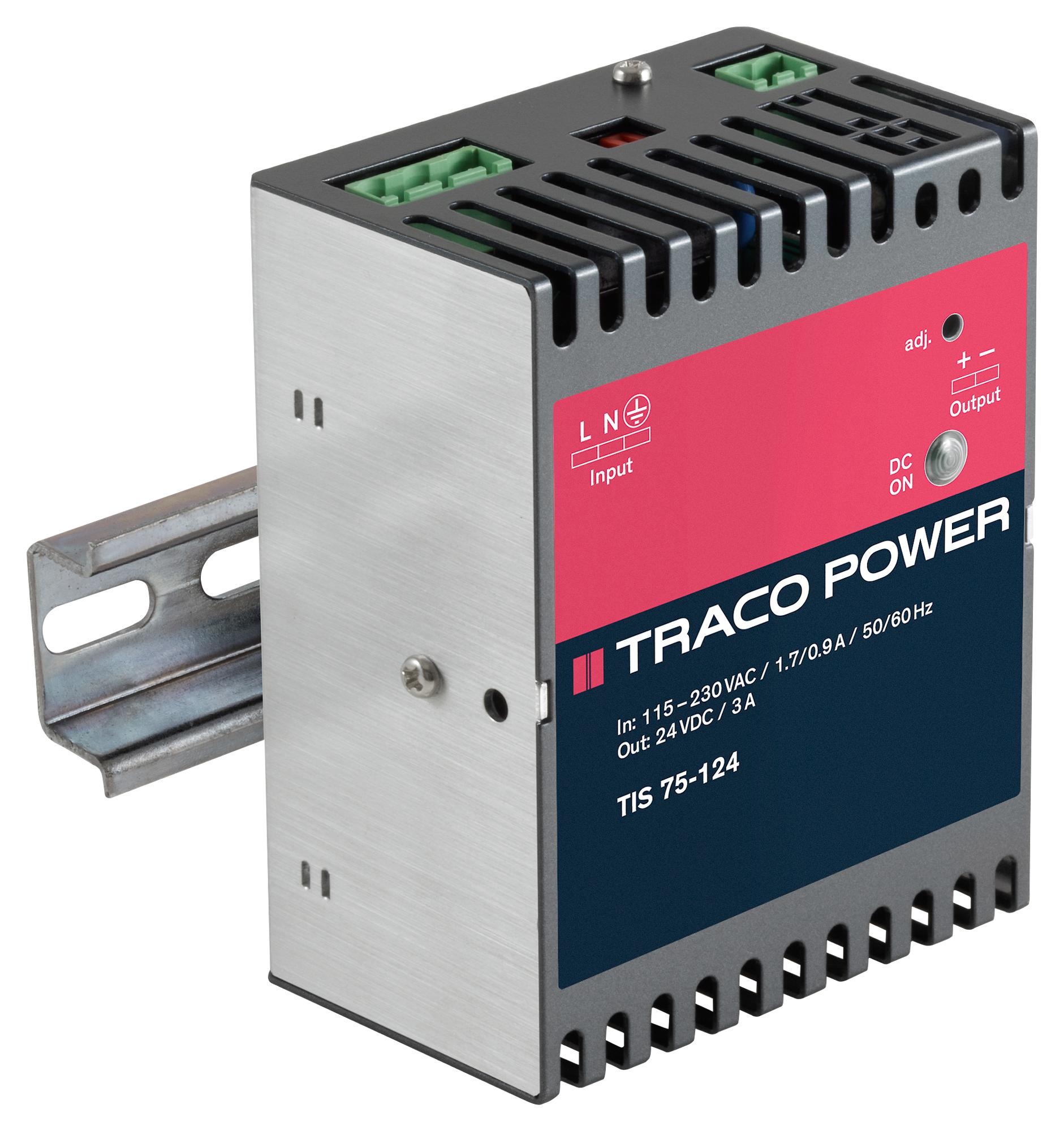

TRACO POWER - TIS 075-124 - AC/DC DIN Rail Power Supply (PSU), ITE, 1 Output, 75 W, 24 VDC, 3 A

  • No. of Outputs: 1 Output
  • Output Power Max: 75W
  • Output Voltage - Output 1: 24VDC
  • Output Current - Output 1: 3A
  • Output Voltage - Output 2: -
  • Output Current - Output 2: -
  • Output Voltage - Output 3: -
  • Output Current - Output 3: -
  • Output Voltage - Output 4: -
  • Current, Output 4: -
  • Input Voltage VAC: 93V AC to 264V AC
  • Power Supply Output Type: Fixed
  • Product Range: TIS Series
  • SVHC: No SVHC (27-Jun-2018)
  • Applications: Industrial
  • Approval Bodies: CE, UL
  • External Depth: 56.7mm
  • External Length / Height: 114.6mm
  • External Width: 90mm
  • Height: 114.6mm
  • Input Frequency: 63Hz
  • Input Voltage AC Max: 264VAC
  • Input Voltage AC Min: 93VAC
  • Length: 56.7mm
  • Line Regulation: 0.2%
  • Load Regulation: 1%
  • No. of Outputs: 1Outputs
  • Operating Temperature Max: 70°C
  • Operating Temperature Min: -25°C
  • Output Current: 3A
  • Output Power: 75W
  • Output Ripple Voltage pk-pk: 50mV
  • Output Voltage: 24V
  • Power Rating: 75W
  • Power Supply Type: Switch Mode
  • Supply Frequency Max: 63Hz
  • Supply Frequency Min: 47Hz
  • Supply Voltage: 230V
