Omschrijving

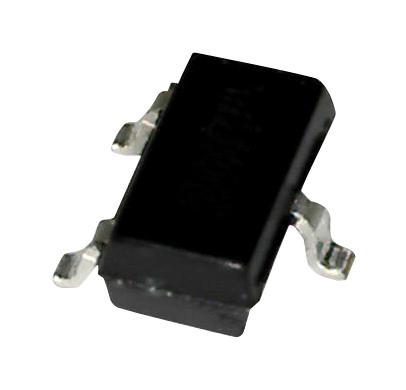

TEXAS INSTRUMENTS - TL431CDBZRG4 - Voltage Reference, Precision, Shunt - Adjustable, TL431 Series, 2.495V to 36V, SOT-23-3
- Voltage Reference Type: Shunt - Adjustable
- Product Range: TL431 Series
- Reference Voltage: 2.495V to 36V
- Initial Accuracy: 2%
- Temperature Coefficient: -
- Voltage Reference Case Style: SOT-23
- No. of Pins: 3Pins
- Operating Temperature Min: 0°C
- Operating Temperature Max: 70°C
- Automotive Qualification Standard: -
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (15-Jan-2019)
- Accuracy: 2
- Accuracy %: 2%
- Base Number: 431
- Cathode Current Ik Max: 100mA
- IC Temperature Range: Commercial
- Input Voltage: 2.495V to 36V
- Input Voltage Max: 36V
- Input Voltage Min: 2.495V
- Logic Function Number: 431
- Operating Temperature Range: 0°C to +70°C
- Operating Voltage Tolerance +: 2%
- Output Current Max: 100mA
- Output Voltage Max: 36V
- Output Voltage Min: 2.5V
- Reference Volt Tolerance ±%: 2%
- Reference Voltage Tolerance: 55mV
- Reference Volts: 2.495V
- Temperature Coeff Over Temp Range: 6mV
- Temperature Coefficient (ppm): 34ppm/°C
- Termination Type: Surface Mount Device
- Topology: Shunt, Adjustable
- Voltage Vcc: 3.3V
