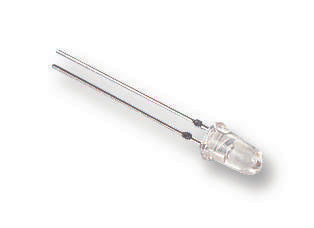

TLCR5100 LED, 5mm, 9DEG, Red Vishay

VISHAYSKU:TLCR5100 Bestelcode:4912433

Prijs:
Actie prijs€1,18

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (2795 units)

Documenten en downloads

Omschrijving

VISHAY - TLCR5100 - LED, Ultrabright, Red, Through Hole, T-1 3/4 (5mm), 50 mA, 2.1 V, 622 nm

  • LED Colour: Red
  • LED Mounting: Through Hole
  • LED Case Size: T-1 3/4 (5mm)
  • Forward Current If: 50mA
  • Forward Voltage: 2.1V
  • Wavelength Typ: 622nm
  • Luminous Intensity: 11cd
  • Viewing Angle: 9°
  • Lens Shape: Round
  • Product Range: -
  • Automotive Qualification Standard: -
  • MSL: -
  • SVHC: No SVHC (15-Jan-2019)
  • Bulb Size: T-1 3/4 (5mm)
  • Dominant Wavelength: 616nm
  • External Diameter: 5.8mm
  • External Length / Height: 8.7mm
  • Forward Current If Max: 50mA
  • Forward Voltage VF Max: 2.7V
  • LED / Lamp Size: 5mm / T-1 3/4
  • LED Type: Standard
  • Luminous Intensity Typ: 11000mcd
  • Material: AllnGaP on GaAs
  • No. of Pins: 2Pins
  • Operating Temperature Max: 100°C
  • Operating Temperature Min: -40°C
  • Operating Temperature Range: -40°C to +100°C
  • Peak Wavelength: 616nm
  • Reverse Protection Voltage: 5V
  • Voltage Vf Typ: 2.1V
  • Wavelength Max: 616nm
  • Wavelength Min: 611nm
