TLL-62BG Tactile Switch, Green LED multicomp Pro

MULTICOMP PROSKU:TLL-62BG Bestelcode:9472010

Prijs:
Actie prijs€1,69

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (54939 units)

Documenten en downloads

Omschrijving

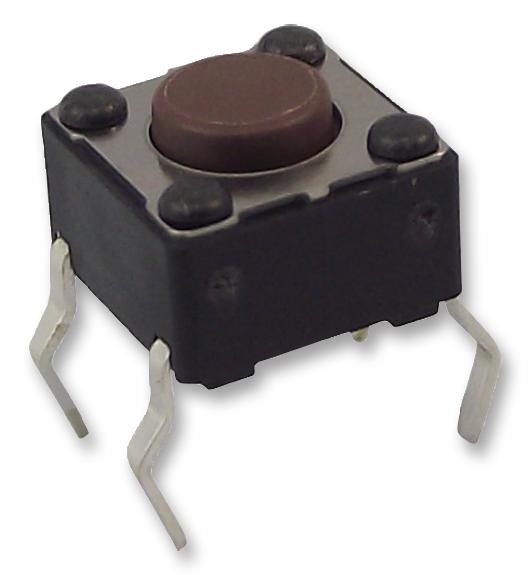

MULTICOMP PRO - TLL-62BG - Tactile Switch, TLL-6, Top Actuated, Through Hole, Plunger for Cap, 160 gf, 50mA at 12VDC

  • Product Range: TLL-6 Series
  • Actuator Orientation: Top Actuated
  • Switch Mounting: Through Hole
  • Actuator Style: Plunger for Cap
  • Actuating Force: 160gf
  • Contact Rating: 50mA at 12VDC
  • Switch Dimensions (L x W): 6mm x 6mm
  • IP Rating: -
  • Illumination: Illuminated
  • SVHC: No SVHC (15-Jan-2019)
  • Actuation Type: Top
  • Actuator / Cap Colour: Green
  • Body Depth: 6.1mm
  • Body Width: 6.1mm
  • Contact Configuration: SPST
  • Contact Current DC Max: 50mA
  • Contact Current Max: 50mA
  • Contact Resistance: 100mohm
  • Contact Voltage DC Max: 12V
  • Contact Voltage DC Nom: 12V
  • Current Rating: 50mA
  • Dielectric Strength VDC: 250VAC
  • Differential Travel Max: 0.2mm
  • External Depth: 6.1mm
  • External Length / Height: 7mm
  • External Width: 6.1mm
  • Height: 4.8mm
  • Height Max: 7mm
  • Insulation Resistance: 100Mohm
  • LED Colour: Green
  • No. of Electrical Operations: 200000
  • Operating Force: 160gf
  • Operating Temperature Max: 70°C
  • Operating Temperature Min: -25°C
  • Switch Operation: Off-On
  • Switch Terminals: Solder
