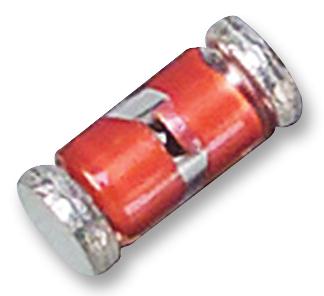

TMMBAT42FILM Diode, Schottky STMICROELECTRONICS

STMICROELECTRONICSSKU:TMMBAT42FILM Bestelcode:9804226

Prijs:
Actie prijs€0,42

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (31236 units)

Documenten en downloads

Omschrijving

STMICROELECTRONICS - TMMBAT42FILM - Small Signal Schottky Diode, Single, 30 V, 200 mA, 400 mV, 4 A, 125 °C

  • Diode Configuration: Single
  • Repetitive Reverse Voltage Vrrm Max: 30V
  • Forward Current If(AV): 200mA
  • Forward Voltage VF Max: 400mV
  • Reverse Recovery Time trr Max: 5ns
  • Forward Surge Current Ifsm Max: 4A
  • Operating Temperature Max: 125°C
  • Diode Case Style: SOD-80 (MiniMELF)
  • No. of Pins: 2Pins
  • Product Range: TMMBA Series
  • Automotive Qualification Standard: -
  • SVHC: No SVHC (15-Jan-2018)
  • Current Ifrm: 500mA
  • Current Ifsm: 4A
  • Diode Type: Schottky
  • External Diameter: 1.62mm
  • External Length / Height: 3.6mm
  • Forward Voltage: 400mV
  • Junction Temperature Tj Max: 125°C
  • Operating Temperature Min: -65°C
  • Operating Temperature Range: -65°C to +125°C
  • Power Dissipation Ptot Max: 200mW
  • Reel Quantity: 2500
  • Reverse Recovery Time trr Typ: 5ns
  • SMD Marking: CATHODE BAND
  • Tape Width: 8mm
