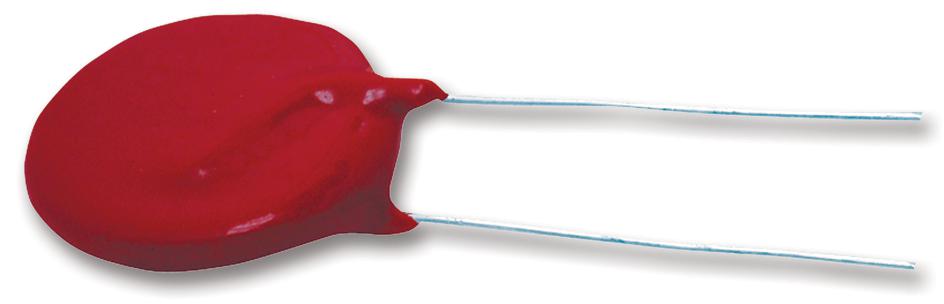

TMOV20RP275E Varistor, Radial, 190J, 275V LITTELFUSE

LITTELFUSESKU:TMOV20RP275E Bestelcode:1817008

Prijs:
Actie prijs€2,68

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (502 units)

Documenten en downloads

Omschrijving

LITTELFUSE - TMOV20RP275E - TVS Varistor, MOV, 275 V, 387 V, TMOV, 710 V, Disc 20mm, Metal Oxide Varistor (MOV)

  • Voltage Rating VAC: 275V
  • Voltage Rating V DC: 387V
  • Product Range: TMOV Series
  • Clamping Voltage Vc Max: 710V
  • Varistor Case Style: Disc 20mm
  • Varistor Type: Metal Oxide Varistor (MOV)
  • Peak Surge Current @ 8/20µs: 10kA
  • Operating Temperature Min: -55°C
  • Operating Temperature Max: 85°C
  • Peak Energy (10/1000uS): 190J
  • Automotive Qualification Standard: -
  • Body Diameter: 20mm
  • Capacitance: 900pF
  • Clamping Current Max: 100A
  • Clamping Voltage: 710V
  • Clamping Voltage @ 8/20µs Max: 710V
  • Lead Length: 25.4mm
  • Lead Spacing: 7.5mm
  • Operating Temperature Range: -55°C to +85°C
  • Suppressor Type: Varistor
  • Surge Current: 10000A
  • Transient Energy: 190J
  • Varistor Voltage @ 1mA: 430V
  • Varistor Voltage @ 1mA Max: 473V
  • Varistor Voltage Tolerance +: 10%
  • Varistor Voltage Tolerance -: 10%
