Omschrijving

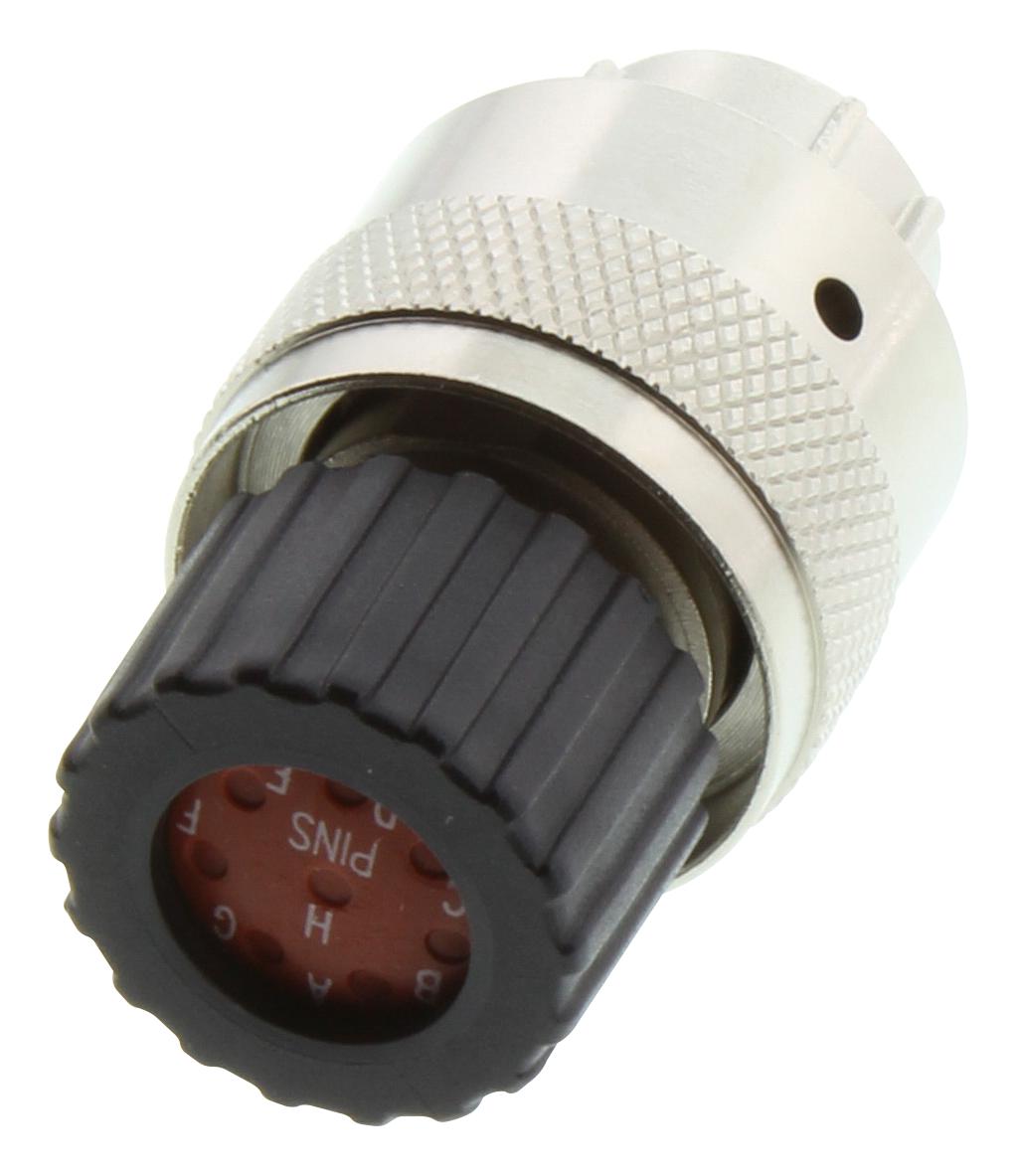

ITT CANNON - TNM6S12-0008P1L - Circular Connector, Trident Neptune Metal Series, Cable Mount Plug, 8 Contacts, Crimp Pin, Bayonet
- Product Range: Trident Neptune Metal Series
- Circular Connector Shell Style: Cable Mount Plug
- No. of Contacts: 8Contacts
- Circular Contact Type: Crimp Pin
- Coupling Style: Bayonet
- Connector Body Material: Zinc Alloy Body
- Connector Body Plating: Nickel
- Contact Material: -
- Contact Plating: -
- Connector Mounting: Cable Mount
- Connector Shell Size: 12
- Connector Type: Circular Industrial
- Contact Gender: Pin
- Current per Signal Contact Max: 6A
- Flammability Rating: UL94V-0
- Gender: Plug
- IP / NEMA Rating: IP67
- Insulation Resistance: 5000Mohm
- Locking Ring: Brass
- No. of Positions: 8Ways
- Operating Temperature Max: 105°C
- Operating Temperature Min: -55°C
- Range: 12
- Voltage Rating VAC: 250V
- Working Voltage: 250VAC
