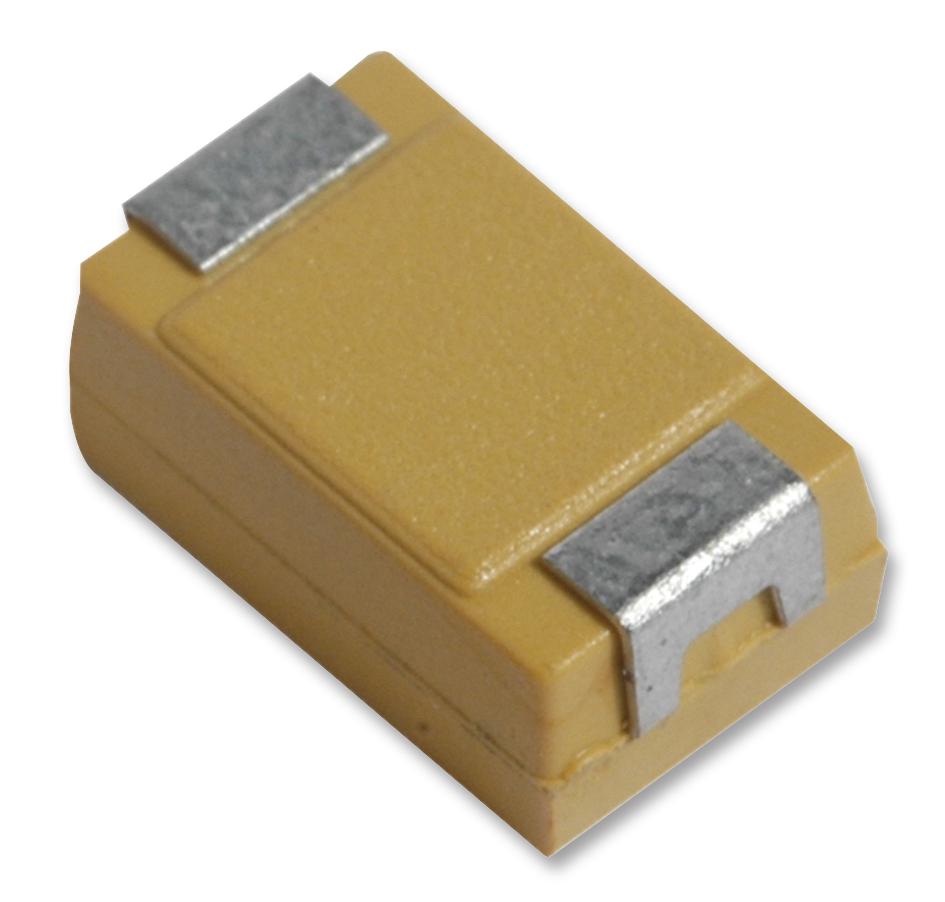

KYOCERA AVX - TPSV157K016R0045 - Surface Mount Tantalum Capacitor, 150 µF, 16 V, 2924 [7361 Metric], ± 10%, 0.045 ohm, V
- Capacitance: 150µF
- Voltage Rating: 16V
- Tantalum Capacitor Case: 2924 [7361 Metric]
- Product Range: TPS Series
- Capacitance Tolerance: ± 10%
- Operating Temperature Min: -55°C
- Operating Temperature Max: 125°C
- ESR: 0.045ohm
- Manufacturer Size Code: V
- Automotive Qualification Standard: -
- SVHC: No SVHC (15-Jan-2019)
- Capacitance Tolerance ±: ± 10%
- Capacitor Case Style: 2924 [7361 Metric]
- Capacitor Mounting: SMD
- Capacitor Terminals: SMD
- External Depth: 3.45mm
- External Length / Height: 7.3mm
- External Width: 6.1mm
- Leakage Current: 24µA
- No. of Pins: 2Pins
- Operating Temperature Range: -55°C to +125°C
- Tolerance +: 10%
- Tolerance -: 10%
- Voltage Rating V DC: 16V
