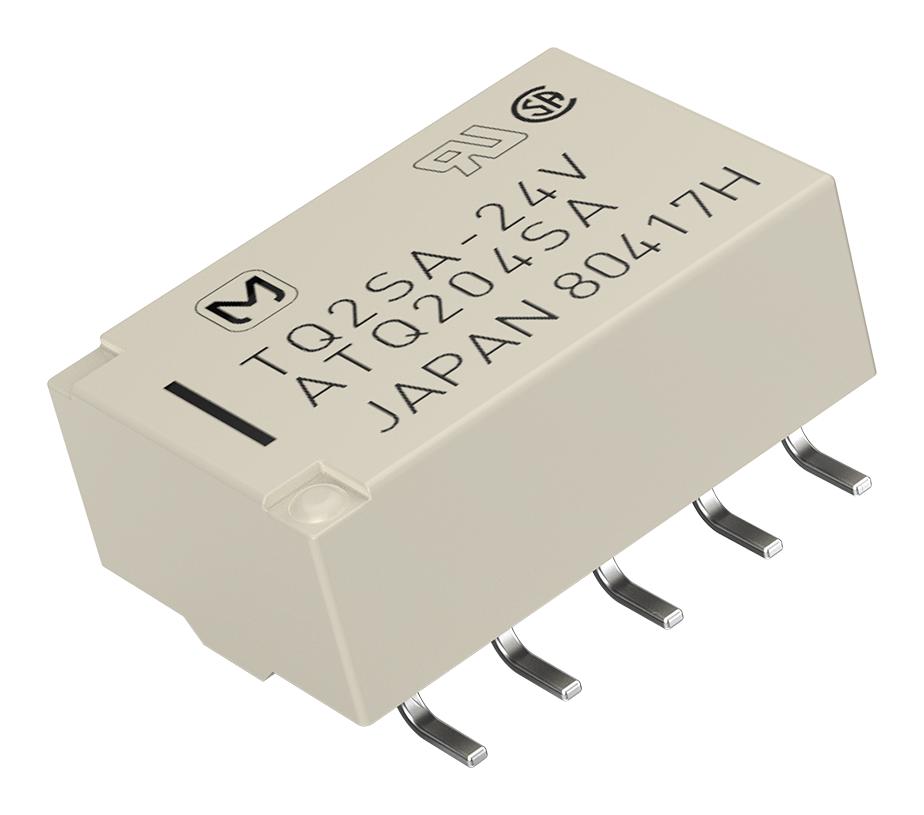

TQ2SA-L2-5V Relay, Signal, DPDT, 30Vdc, 2A Panasonic

PANASONICSKU:TQ2SA-L2-5V Bestelcode:625760

Prijs:
Actie prijs€7,37

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (834 units)

Documenten en downloads

Omschrijving

PANASONIC - TQ2SA-L2-5V - Signal Relay, 5 VDC, DPDT, 2 A, TQ, Surface Mount, Latching Dual Coil

  • Coil Voltage: 5VDC
  • Contact Configuration: DPDT
  • Contact Current: 2A
  • Product Range: TQ-SMD Series
  • Relay Mounting: SMD
  • Coil Type: Latching Dual Coil
  • Relay Terminals: Solder
  • Contact Voltage VAC: 125V
  • Contact Voltage VDC: 30V
  • Contact Material: Silver
  • Coil Resistance: 75ohm
  • SVHC: No SVHC (07-Jul-2017)
  • Approval Bodies: CSA, UL
  • Approvals & Standards: CSA, UL
  • Coil Current: 28.1mA
  • Coil Operating Lower Percent Limit: 75%
  • Coil Operating Upper Percent Limit: 130%
  • Coil Power Continuous: 140mW
  • Coil Voltage VDC Nom: 5V
  • Contact Current AC Max: 500mA
  • Contact Current DC Max: 1A
  • Contact Current Max: 2A
  • Contact Current Min: 10µA
  • Contact Voltage AC Max: 125V
  • Contact Voltage AC Nom: 125V
  • Contact Voltage DC Max: 30V
  • Contact Voltage DC Nom: 30V
  • DC Coil Power: 200mW
  • External Depth: 14mm
  • External Height: 5.6mm
  • External Length / Height: 14mm
  • External Width: 9mm
  • Lead Spacing: 2.54mm
  • Nom Operating Power: 140mW
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -40°C
  • Operating Time: 3ms
