TSAL6200 Infrared Emitter 940nm T-1 3/4 Vishay

VISHAYSKU:TSAL6200 Bestelcode:3152856

Prijs:
Actie prijs€1,07

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (26832 units)

Documenten en downloads

Omschrijving

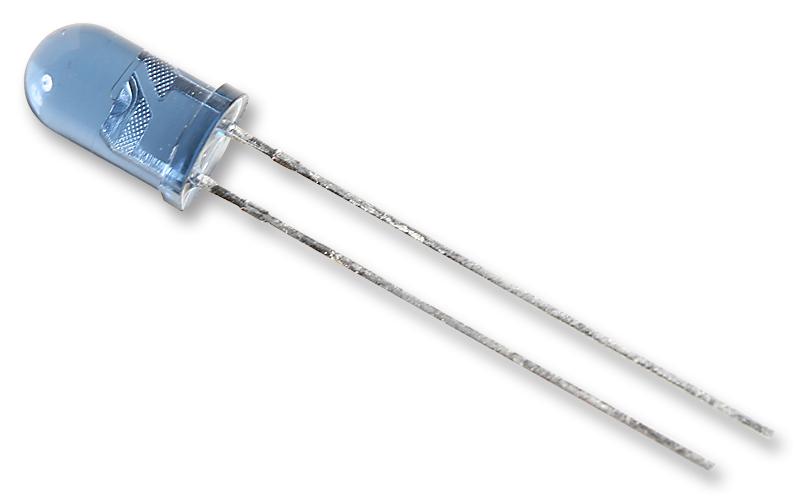

VISHAY - TSAL6200 - Infrared Emitter, High Power, 940 nm, 17 °, T-1 3/4 (5mm), 15 mW/Sr, 15 ns, 15 ns

  • Peak Wavelength: 940nm
  • Angle of Half Intensity: 17°
  • Diode Case Style: T-1 3/4 (5mm)
  • Radiant Intensity (Ie): 15mW/Sr
  • Rise Time: 15ns
  • Fall Time tf: 15ns
  • Forward Current If(AV): 100mA
  • Forward Voltage VF Max: 1.6V
  • Operating Temperature Min: -40°C
  • Operating Temperature Max: 85°C
  • Automotive Qualification Standard: -
  • Product Range: -
  • MSL: -
  • SVHC: No SVHC (15-Jan-2019)
  • Angle of Half Sensitivity ±: 17°
  • LED / Lamp Size: T-1 3/4
  • No. of Pins: 2Pins
  • Operating Temperature Range: -40°C to +85°C
  • Turn Off Time: 800ns
  • Turn On Time: 800ns
  • Viewing Angle: 17°
  • Voltage Vf Typ: 1.35V
  • Wavelength Typ: 940nm
