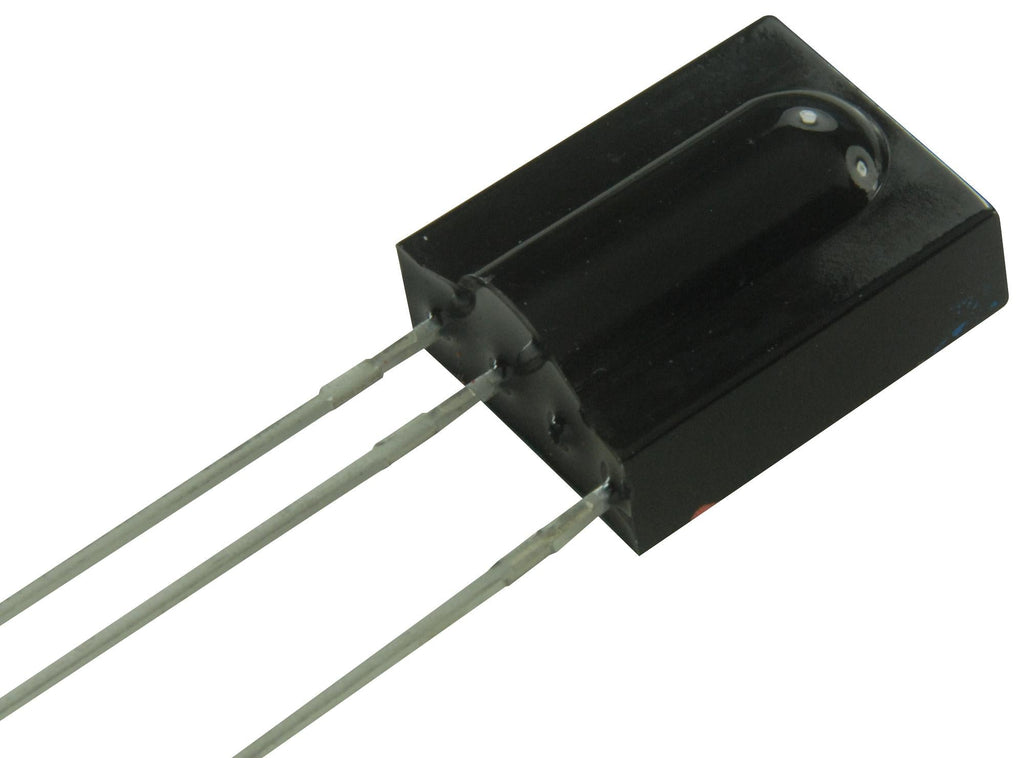

VISHAY - TSOP31256 - Infrared Receiver, Remote Control, 56 kHz, Side View Through Hole
- Carrier Frequency: 56kHz
- IR Receiver Mounting Style: Side View Through Hole
- Remote Control Code: RC-5, RC-6, Panasonic, NEC, Sharp, r-step, Thomson RCA
- Transmission Range: 45m
- Automatic Gain Control (AGC) Type: AGC2
- Detection Threshold / Sensitivity: 0.12mW/m²
- Directivity: 45°
- Supply Voltage Max: 5.5V
- Supply Voltage Min: 2.5V
- Operating Temperature Min: -25°C
- Operating Temperature Max: 85°C
- Supply Current: 450µA
- Product Range: -
- SVHC: No SVHC (15-Jan-2019)
- Forward Current If: 3mA
- Forward Current If Max: 3mA
- Forward Voltage VF Max: 6V
- No. of Pins: 3Pins
- Operating Temperature Range: -25°C to +85°C
- Supply Voltage Range: 2.5V to 5.5V
- Viewing Angle: 45°
