TSOP4838 Ir Receiver, 45m, 0.12MW/m2, Side Th Vishay

VISHAYSKU:TSOP4838 Bestelcode:4913190

Prijs:
Actie prijs€2,44

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (2144 units)

Documenten en downloads

Omschrijving

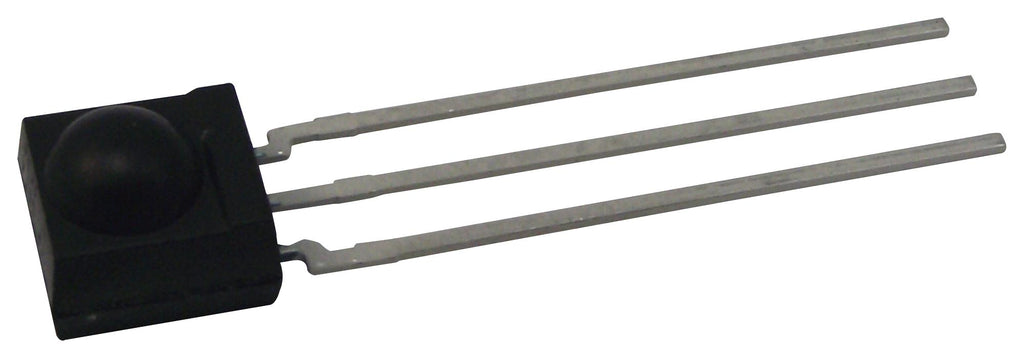

VISHAY - TSOP4838 - Infrared Receiver, Remote Control, 38 kHz, Side View Through Hole

  • Carrier Frequency: 38kHz
  • IR Receiver Mounting Style: Side View Through Hole
  • Remote Control Code: RC-5, RC-6, Panasonic, NEC, Sharp, r-step, Thomson RCA
  • Transmission Range: 45m
  • Automatic Gain Control (AGC) Type: AGC2
  • Detection Threshold / Sensitivity: 0.12mW/m²
  • Directivity: 45°
  • Supply Voltage Max: 5.5V
  • Supply Voltage Min: 2.5V
  • Operating Temperature Min: -25°C
  • Operating Temperature Max: 85°C
  • Supply Current: 800µA
  • Product Range: -
  • SVHC: No SVHC (15-Jan-2019)
  • External Depth: 5.6mm
  • External Length / Height: 6.95mm
  • External Width: 6mm
  • Lead Length: 23.55mm
  • Operating Frequency: 38kHz
  • Operating Temperature Range: -25°C to +85°C
  • Supply Voltage Range: 2.5V to 5.5V
