Omschrijving
TRACO POWER - TSP 090-148 - AC/DC DIN Rail Power Supply (PSU), ITE, 1 Output, 96 W, 48 VDC, 2 A
- No. of Outputs: 1 Output
- Output Power Max: 96W
- Output Voltage - Output 1: 48VDC
- Output Current - Output 1: 2A
- Output Voltage - Output 2: -
- Output Current - Output 2: -
- Output Voltage - Output 3: -
- Output Current - Output 3: -
- Output Voltage - Output 4: -
- Current, Output 4: -
- Input Voltage VAC: 85V AC to 264V AC
- Power Supply Output Type: Adjustable, Fixed
- Product Range: -
- SVHC: No SVHC (27-Jun-2018)
- Applications: Industrial
- Approval Bodies: CB, CSA, EN, IEC, UL
- Efficiency: 87%
- External Depth: 110mm
- External Length / Height: 110mm
- External Width: 35mm
- Frequency Max: 63Hz
- Frequency Min: 47Hz
- Height: 110mm
- IP Rating: IP20
- Input Frequency: 63Hz
- Input Voltage AC Max: 263VAC
- Input Voltage AC Min: 85VAC
- Length: 110mm
- Line Regulation: 0.5%
- Load Regulation: 0.5%
- No. of Outputs: 1Outputs
- Operating Temperature Max: +70°C
- Operating Temperature Min: -25°C
- Output Current: 2A
- Output Ripple Voltage pk-pk: 100mV
- Output Voltage: 48V
- Output Voltage Max: 56VDC
- Output Voltage Min: 48VDC
Verwachte verzendkosten
Bekijk ook eens

TRACO POWER
Tsp 180-148 PSU, Metal, 192W, 48V/4A TRACO Power
Actie prijs€318,04
Nog maar 2 producten over
TRACO POWER
TXL 035-12S PSU, ENCLOSED, 35W, 12V TRACO POWER
Actie prijs€71,98
Op voorraad, 34 producten
TRACO POWER

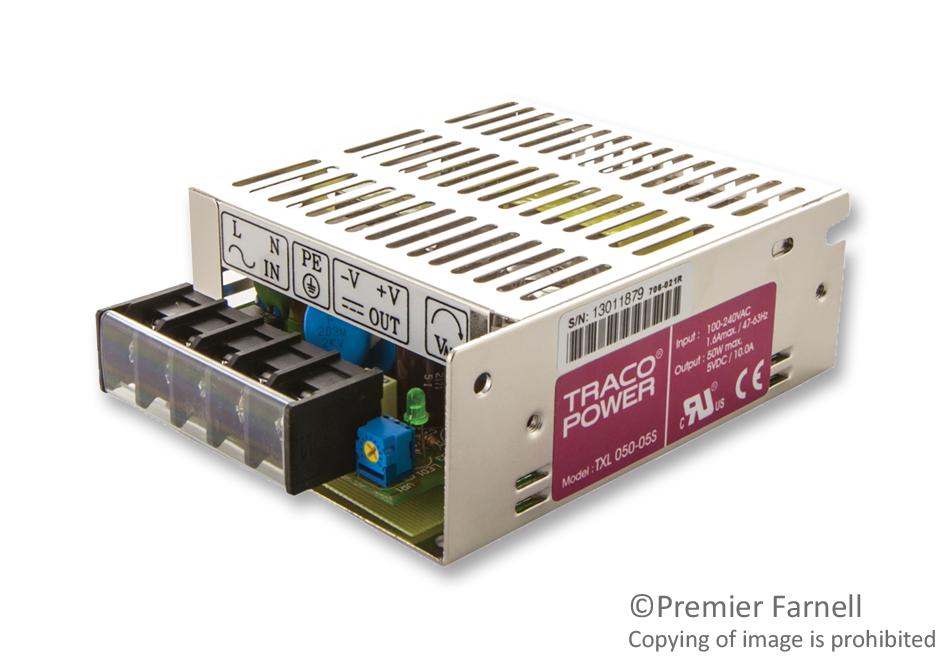

TXL 050-05S PSU, ENCLOSED, 50W, 5V TRACO POWER
