TV06RW-13-35PN(W52) Plug, Free, 5A, 22WAY Amphenol Ltd

AMPHENOL LTDSKU:TV06RW-13-35PN(W52) Bestelcode:1281551

Prijs:
Actie prijs€90,34

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (13 units)

Documenten en downloads

Omschrijving

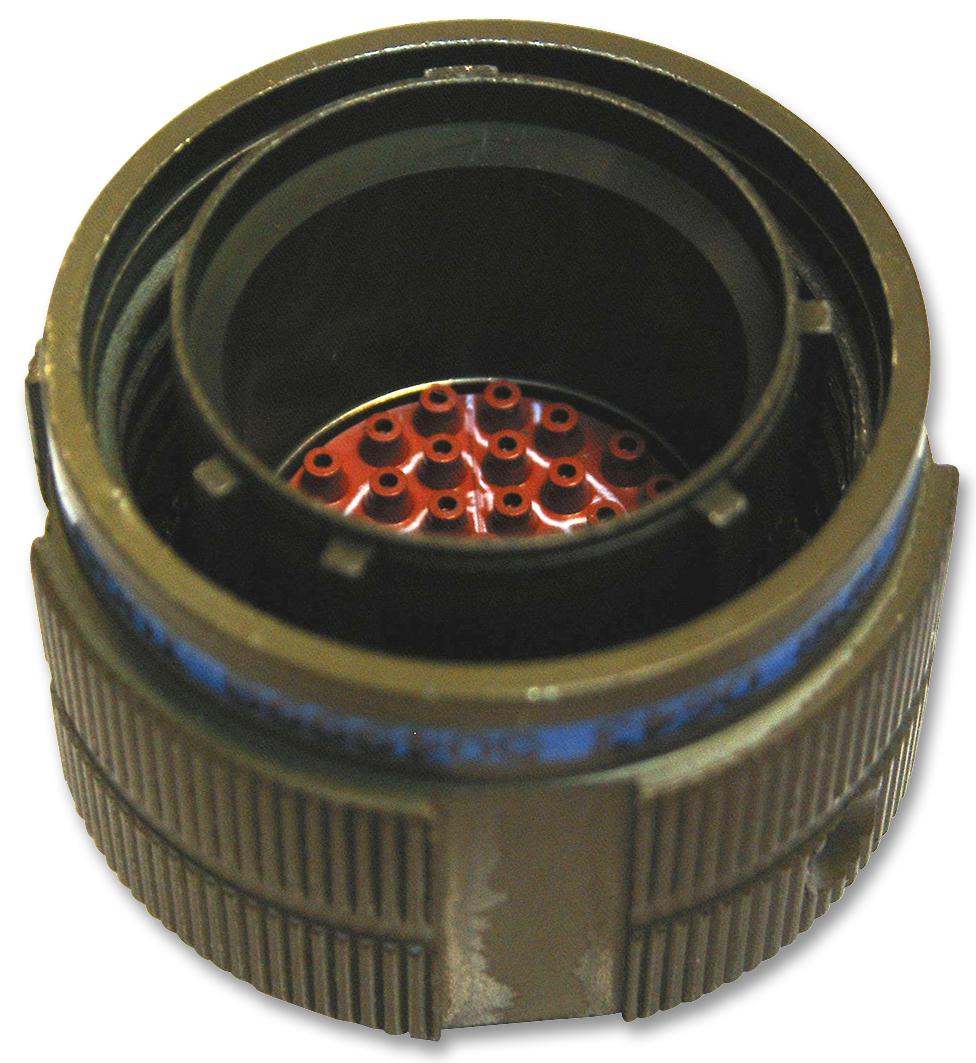

AMPHENOL LTD - TV06RW-13-35PN(W52) - Circular Connector, Tri-Start TV, Straight Plug, 22 Contacts, Crimp Pin, Threaded, 13-35

  • Product Range: Tri-Start TV Series
  • Circular Connector Shell Style: Straight Plug
  • No. of Contacts: 22Contacts
  • Circular Contact Type: Crimp Pin
  • Coupling Style: Threaded
  • Insert Arrangement: 13-35
  • Connector Body Material: Aluminium Alloy Body
  • Connector Body Plating: Olive Drab Chromate over Cadmium
  • Contact Material: Copper Alloy
  • Contact Plating: Gold
  • Insert Rotation: N
  • Service Class: Corrosion Resistant, EMI
  • Equivalent Military Specification: MIL-DTL-38999 Series III
  • SVHC: No SVHC (15-Jan-2019)
  • Colour: Olive Drab
  • Contact Resistance Max: 5mohm
  • Current Rating: 5A
  • Insulation Resistance: 5000Mohm
  • Operating Temperature Max: 175°C
  • Operating Temperature Min: -55°C
  • Polarisation Type: Keyway N
  • Proof Voltage: 1300V
  • Range: 13-35
  • Standard: MIL-C-38999 Series III
  • Wire Size AWG Max: 22AWG
  • Wire Size AWG Min: 28AWG
  • Working Voltage: 500V
