URM67.0050 Cable, Coax, URM67, Black, 50m Belden

BELDENSKU:URM67.0050 Bestelcode:1769505

Prijs:
Actie prijs€308,03

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (17 units)

Documenten en downloads

Omschrijving

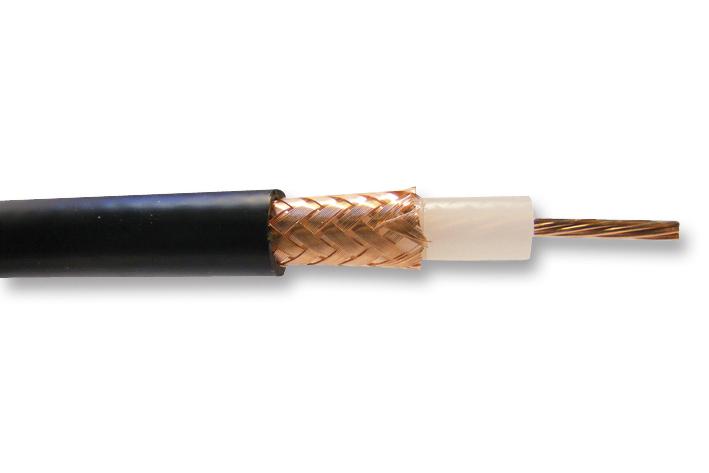

BELDEN - URM67.0050 - Coaxial Cable, URM67, 6.8 mm², 50 ohm, 164 ft, 50 m

  • Coaxial Cable Type: URM67
  • Wire Gauge: -
  • Conductor Area CSA: 6.8mm²
  • Impedance: 50ohm
  • Reel Length (Imperial): 164ft
  • Reel Length (Metric): 50m
  • Jacket Colour: Black
  • Jacket Material: PVC
  • Conductor Material: Copper
  • No. of Max Strands x Strand Size: 7 x 0.75mm
  • External Diameter: 10.3mm
  • Product Range: -
  • SVHC: No SVHC (15-Jan-2018)
  • Attenuation @ 100MHz: 6.8dB
  • Attenuation @ 1GHz: 25.2dB
  • Attenuation @ 200MHz: 9.9dB
  • Capacitance: 98pF/m
  • Conductor Make-up: 7 / 0.75 mm
  • Operating Temperature Max: 70°C
  • Operating Temperature Min: -30°C
  • Outer Diameter: 10.3mm
  • Velocity of Propagation (%): 66%
  • Voltage Rating VAC: 6500V
