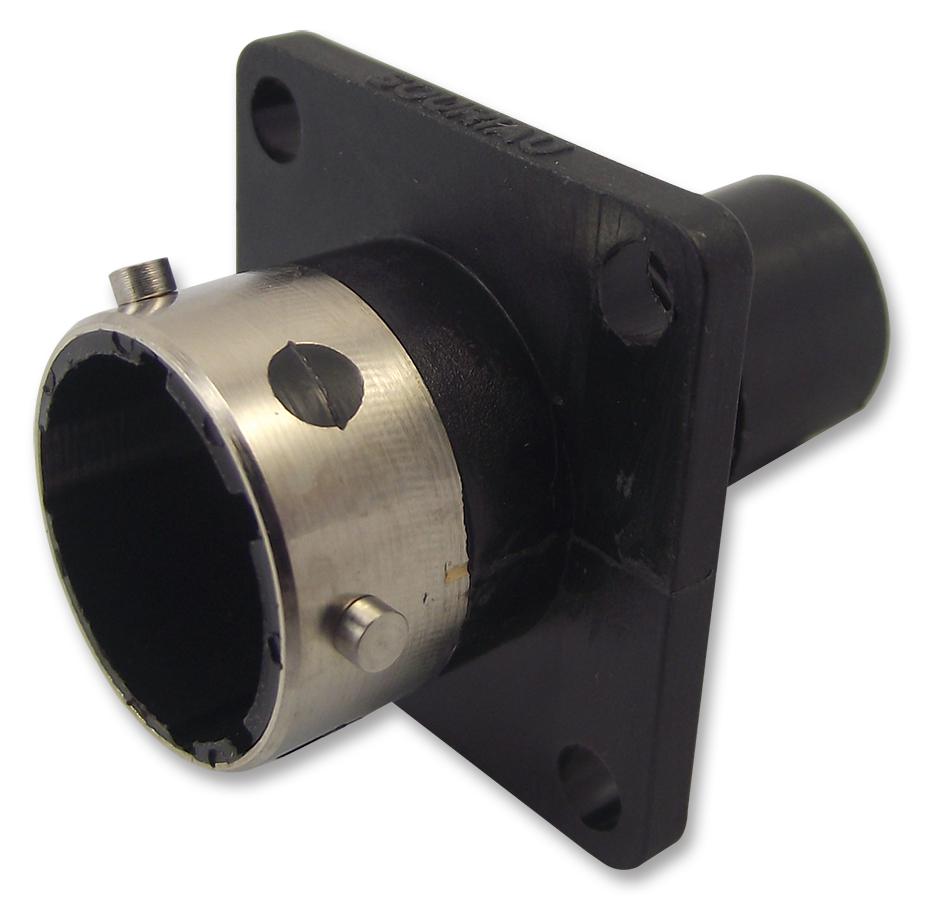

UTG02028P RECEPTACLE, SIZE20, 28WAY, PIN SOURIAU-SUNBANK / EATON

SOURIAU-SUNBANK / EATONSKU:UTG02028P Bestelcode:105350

Prijs:
Actie prijs€21,93

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (61 units)

Documenten en downloads

Omschrijving

WEICON - 10535057 - Filler, Repair Stick, Epoxy, Titanium

  • Product Range: Trim Trio UTG Series
  • Circular Connector Shell Style: Wall Mount Receptacle
  • No. of Contacts: 28Contacts
  • Circular Contact Type: Crimp Pin - Contacts Not Supplied
  • Coupling Style: Bayonet
  • Connector Body Material: Thermoplastic, Glass Filled Body
  • Connector Body Plating: -
  • Contact Material: -
  • Contact Plating: -
  • SVHC: No SVHC (15-Jan-2019)
  • Body Plating: Nickel
  • Connector Mounting: Panel Mount
  • Connector Shell Size: 20
  • Connector Type: Circular Industrial
  • Contact Gender: Pin
  • Current Rating: 13A
  • Flammability Rating: UL94V-0
  • Gender: Receptacle
  • IP / NEMA Rating: IP65
  • Insert Arrangement: 20-28
  • Insulation Resistance: 5000Mohm
  • No. of Positions: 28Ways
  • Operating Temperature Max: 125°C
  • Operating Temperature Min: -55°C
  • Panel Cutout Diameter: 34.5mm
  • Voltage Rating VAC: 750V
  • Working Voltage: 750V
