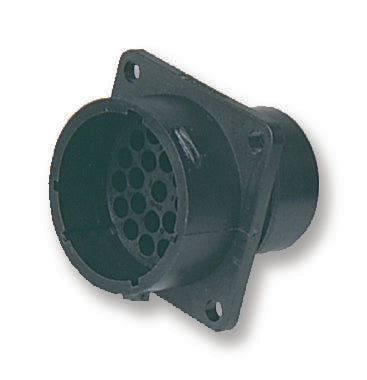

UTP01412P Plug, Panel, 12WAY Souriau-SUNBANK / Eaton

SOURIAU-SUNBANK / EATONSKU:UTP01412P Bestelcode:535461

Prijs:
Actie prijs€22,77

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Uitverkocht

Documenten en downloads

Omschrijving

SOURIAU-SUNBANK / EATON - UTP01412P - Circular Connector, Souriau Trim Trio UTP Series, Wall Mount Receptacle, 12 Contacts

  • Product Range: Trim Trio UTP Series
  • Circular Connector Shell Style: Wall Mount Receptacle
  • No. of Contacts: 12Contacts
  • Circular Contact Type: Crimp Pin - Contacts Not Supplied
  • Coupling Style: Bayonet
  • Connector Body Material: Thermoplastic, Glass Filled Body
  • Connector Body Plating: -
  • Contact Material: -
  • Contact Plating: -
  • SVHC: No SVHC (15-Jan-2019)
  • Colour: Black
  • Connector Mounting: Flange Mount
  • Connector Shell Size: 14
  • Connector Type: Circular Industrial
  • Contact Gender: Pin
  • Flammability Rating: UL94V-0
  • Gender: Receptacle
  • Insert Arrangement: 14-12
  • Insulation Resistance: 5000Mohm
  • No. of Positions: 12Ways
  • Operating Temperature Max: 125°C
  • Operating Temperature Min: -25°C
  • Panel Cutout Diameter: 25mm
  • Voltage Rating VAC: 750V
  • Working Voltage: 750V
