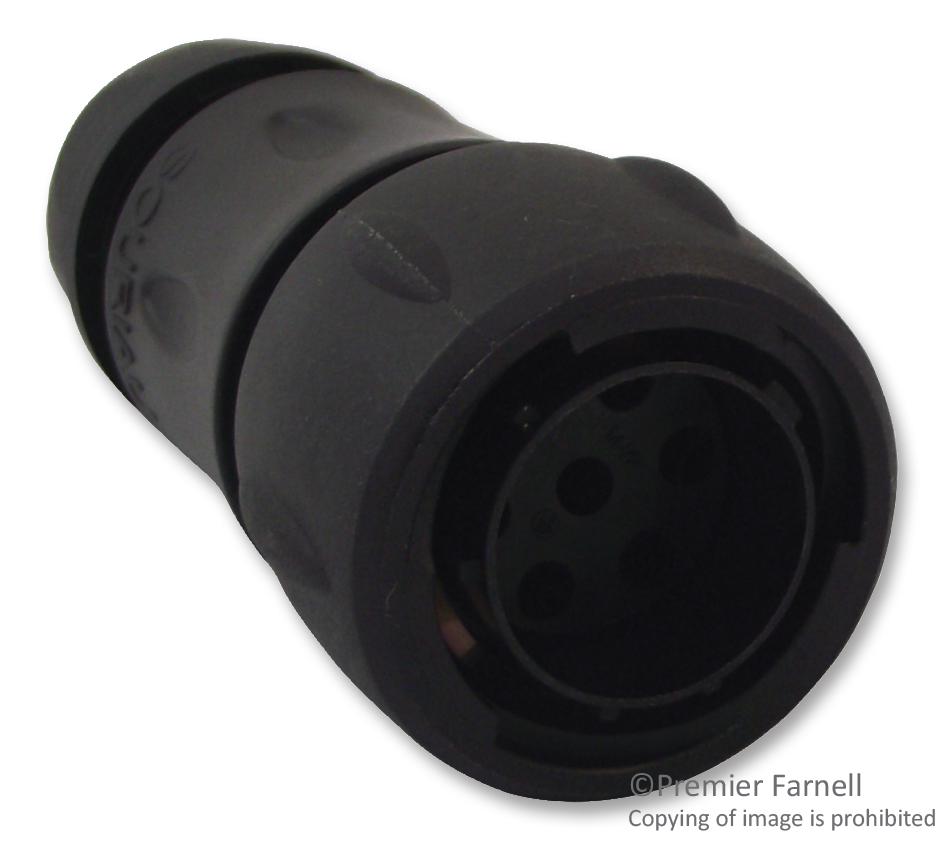

UTS6JC106P Circular Connector, Plug, 10-6, Cable Souriau-SUNBANK / Eaton

SOURIAU-SUNBANK / EATON - UTS6JC106P - Circular Connector, Souriau Trim Trio UTS Series, Straight Plug, 6 Contacts

• Product Range: Trim Trio UTS Series
• Circular Connector Shell Style: Straight Plug
• No. of Contacts: 6Contacts
• Circular Contact Type: Crimp Pin - Contacts Not Supplied
• Coupling Style: Bayonet
• Connector Body Material: Nylon (Polyamide) Body
• Connector Body Plating: -
• Contact Material: -
• Contact Plating: -
• SVHC: No SVHC (15-Jan-2019)
• Approval Bodies: UL, VDE
• Body Diameter: 26.2mm
• Cable Diameter Max: 8mm
• Cable Diameter Min: 1.5mm
• Colour: Black
• Connector Mounting: Cable Mount
• Connector Shell Size: 10
• Connector Type: Circular Industrial
• Contact Gender: Pin
• Flammability Rating: UL94V-0
• Gender: Plug
• IP / NEMA Rating: IP68, IP69K
• Insert Arrangement: 10-6
• Insulation Resistance: 5000Mohm
• No. of Mating Cycles: 250
• No. of Positions: 6Ways
• Operating Temperature Max: 105°C
• Operating Temperature Min: -40°C
• Test Voltage: 2000V
