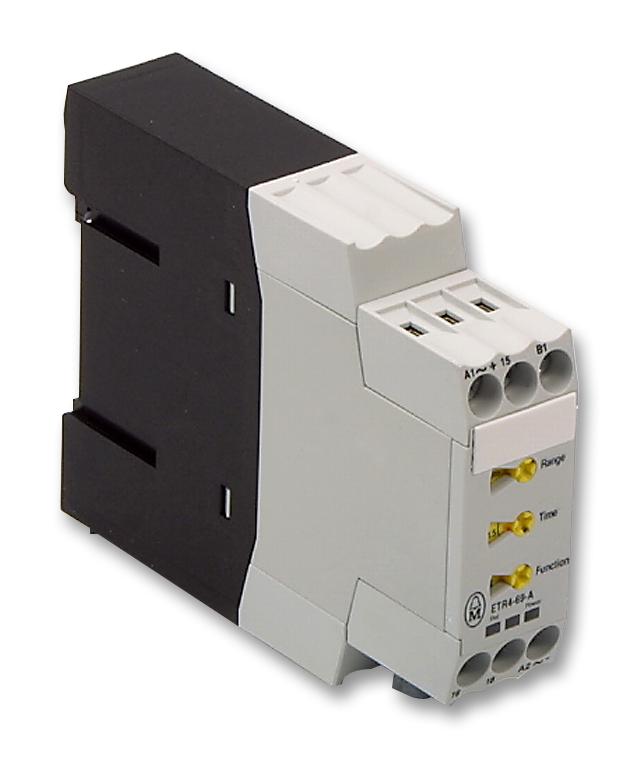

V0DDTD Timer, Digital, Eliro, DPNO, 8 Function GIC

GIC - V0DDTD - DIN Rail Digital Timer, Eliro, Multifunction, 0.1 s, 999 h, 1 Ranges, 3

• Product Range: Eliro Series
• Timer Functions: Multifunction
• Time Min: 0.1s
• Time Max: 999h
• No. of Timing Ranges: 1Ranges
• No. of Digits: 3
• Timer Output: 1 Changeover Relay
• Supply Voltage Max: 240V
• Current Rating Nom: 8A
• Connection / Termination: Screw Terminals
• SVHC: No SVHC (15-Jun-2015)
• Contact Configuration: DPST
• Contact Current: 8A
• Contact Current AC Max: 8A
• Contact Current DC Max: 8A
• Contact Voltage AC Max: 240V
• Contact Voltage DC Max: 24V
• Contact Voltage VAC: 240V
• Contact Voltage VDC: 24V
• Delay Time Range: 0.1s to 999h
• External Depth: 76mm
• External Length / Height: 89mm
• External Width: 17.5mm
• Nom Input Voltage: 240V
• Operating Temperature Max: 55°C
• Operating Temperature Min: -10°C
• Relay Mounting: DIN Rail
• Relay Terminals: Screw
• Supply Voltage Range: 24V AC to 240V AC, 24V DC to 240V DC
• Timing Adjustment: Pushbutton
