V14MLA0805LNH Varistor, 0805, 14V LITTELFUSE

LITTELFUSESKU:V14MLA0805LNH Bestelcode:1816934

Prijs:
Actie prijs€0,70

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (1600 units)

Documenten en downloads

Omschrijving

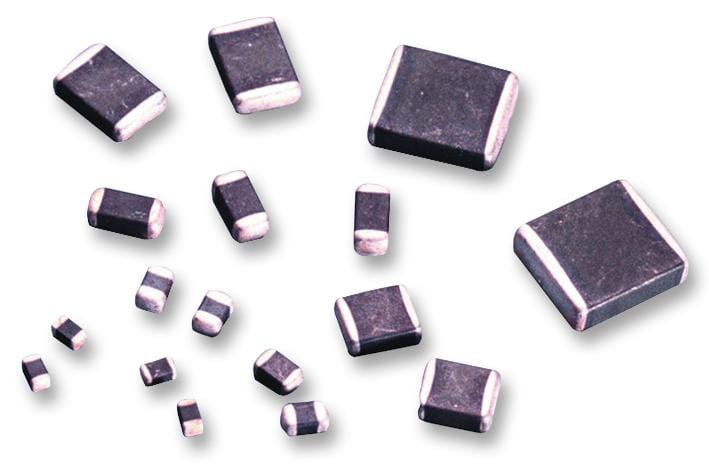

LITTELFUSE - V14MLA0805LNH - TVS Varistor, 10 V, 14 V, MLA, 32 V, 0805 [2012 Metric], Multilayer Varistor (MLV)

  • Voltage Rating VAC: 10V
  • Voltage Rating V DC: 14V
  • Product Range: MLA Series
  • Clamping Voltage Vc Max: 32V
  • Varistor Case Style: 0805 [2012 Metric]
  • Varistor Type: Multilayer Varistor (MLV)
  • Peak Surge Current @ 8/20µs: 40A
  • Operating Temperature Min: -55°C
  • Operating Temperature Max: 125°C
  • Peak Energy (10/1000uS): 100mJ
  • Automotive Qualification Standard: -
  • Capacitance: 320pF
  • Clamping Voltage: 32V
  • Operating Temperature Range: -55°C to +125°C
  • Peak Pulse Current IPP @ 8/20µs: 40A
  • Suppressor Type: Varistor
  • Surge Current: 40A
  • Varistor Voltage @ 1mA: 15.9V
  • Varistor Voltage @ 1mA Max: 20.3V
