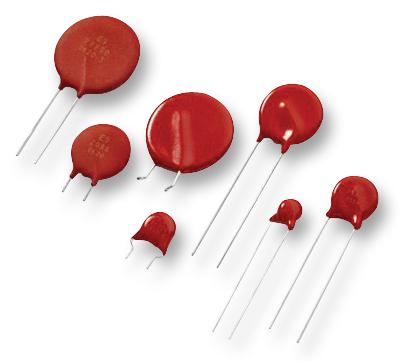

V180ZA5P Varistor, Radial, 180V LITTELFUSE

LITTELFUSESKU:V180ZA5P Bestelcode:1816992

Prijs:
Actie prijs€0,71

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (18 units)

Documenten en downloads

Omschrijving

LITTELFUSE - V180ZA5P - TVS Varistor, MOV, 115 V, 153 V, ZA, 300 V, Disc 10mm, Metal Oxide Varistor (MOV)

  • Voltage Rating VAC: 115V
  • Voltage Rating V DC: 153V
  • Product Range: ZA Series
  • Clamping Voltage Vc Max: 300V
  • Varistor Case Style: Disc 10mm
  • Varistor Type: Metal Oxide Varistor (MOV)
  • Peak Surge Current @ 8/20µs: 2.5kA
  • Operating Temperature Min: -55°C
  • Operating Temperature Max: 85°C
  • Peak Energy (10/1000uS): 18J
  • Automotive Qualification Standard: -
  • Body Diameter: 10mm
  • Clamping Voltage: 300V
  • Device Marking: P180Z5
  • Operating Temperature Range: -55°C to +85°C
  • Suppressor Type: Transient Voltage
  • Surge Current: 2500A
  • Varistor Voltage @ 1mA: 180V
  • Varistor Voltage @ 1mA Max: 198V
  • Varistor Voltage Tolerance +: 10%
  • Varistor Voltage Tolerance -: 10%
